Same model may have multiple batches, images only for reference.

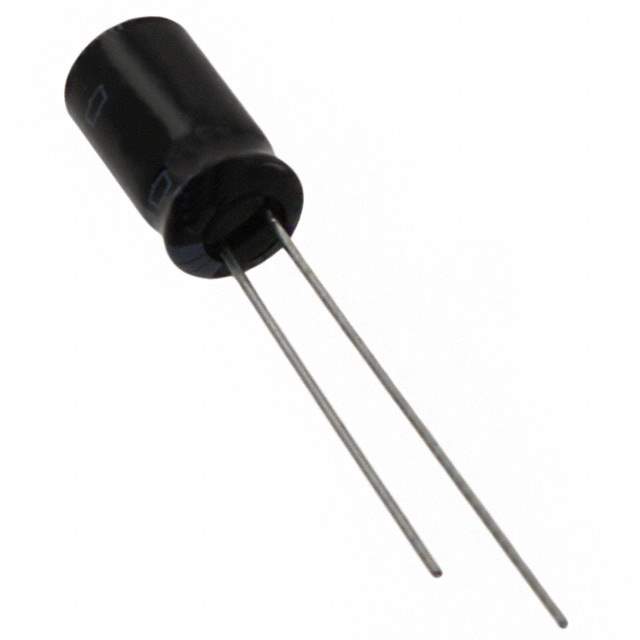

ESMG6R3ELL471MF11D Real Image
Same model may have multiple batches, images only for reference.

ESMG6R3ELL471MF11D

Part No ESMG6R3ELL471MF11D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 6.3V RADIAL / 470 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series SMG
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 6.3 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 320 mA @ 120 Hz
Ripple Current @ High Frequency 480 mA @ 100 kHz
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-1005
Standard Package 2,000
Win Source Part Number 1139332-ESMG6R3ELL471MF11D
Ultra Librarian 3D Model Ultra Librarian ESMG6R3ELL471MF11D CAD Model

Description

The SMG series capacitor is a high-quality aluminum electrolytic capacitor that is designed for general-purpose applications.

  • Series: SMG
  • Type: Aluminum Electrolytic Capacitor
  • Application: General-Purpose
  • Capacitance: 470 µF
  • Voltage Rating: 6.3 V
  • Tolerance: ±20%
  • ESR: Not Specified
  • Lifetime @ Temperature: 2000 Hrs @ 85°C
  • Polarity: Polarized
  • Package: Radial, Can
  • Mounting Type: Through-Hole
  • Ripple Current (Low Frequency): 320 mA @ 120 Hz
  • Ripple Current (High Frequency): 480 mA @ 100 kHz
  • Diameter: 0.248" (6.30mm)
  • Height: 0.492" (12.50mm)
