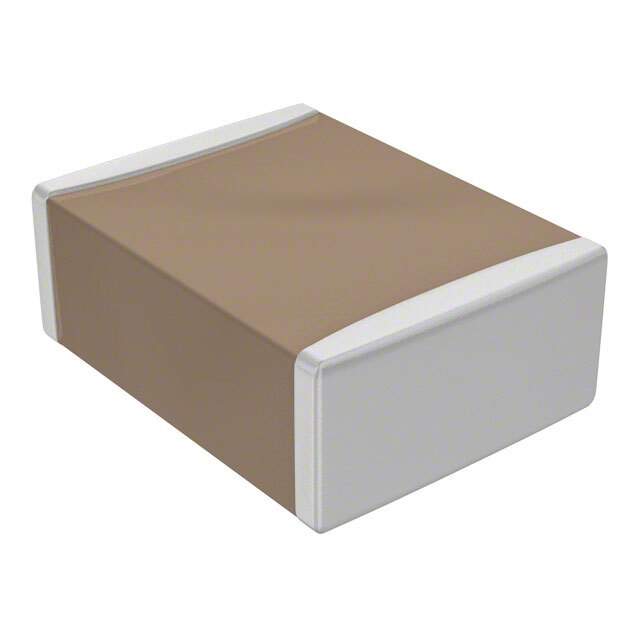

KTS501B105M76N0T00 Real Image
Same model may have multiple batches, images only for reference.

KTS501B105M76N0T00

Part No KTS501B105M76N0T00
Manufacturer United Chemi-Con
Catalog Ceramic Capacitors
Description CAP CER 1UF 500V X7R 3025 / 1 µF ±20% 500V Ceramic Capacitor X7R 3025 (7563 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr United Chemi-Con
Series NTS
Package Tape & Reel
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 500V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Mounting Type Surface Mount, MLCC
Package / Case 3025 (7563 Metric)
Size / Dimension 0.295" L x 0.248" W (7.50mm x 6.30mm)
Standard Package 300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1350719-KTS501B105M76N0T00
Ultra Librarian 3D Model Ultra Librarian KTS501B105M76N0T00 CAD Model

Description

The United Chemi-Con NTS series of ceramic capacitors is designed for automotive applications.

  • Series: NTS
  • Win Source Part Number: 1350719-KTS501B105M76N0T00
  • Package: Tape and Reel
  • Size/Dimension: 0.295" L x 0.248" W (7.50mm x 6.30mm)
  • Capacitance: 1 µF
  • Tolerance: ±20%
  • Rated Voltage: 500V
  • Temperature Coefficient: X7R
  • Mounting Type: Surface Mount
  • Package/Case: 3025 (7563 Metric)
  • Operating Temperature: -55°C to 125°C
  • AEC-Q200: Rated
