PI3305-00-LGIZ

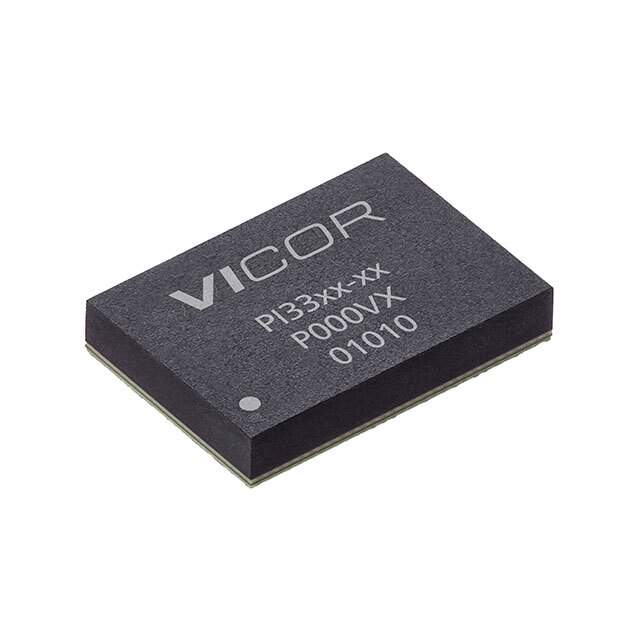

Name: PI3305-00-LGIZ
Brand: Vicor Corporation
SKU: 1340520
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PI3305-00-LGIZ
Manufacturer	Vicor Corporation
Catalog	PMIC - Voltage Regulators - DC DC Switching Regulators
Description	DC DC CONVERTER 15V / Buck Switching Regulator IC Positive Adjustable (Fixed) 10V (15V) 1 Output 8A 123-BLGA Module
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - DC DC Switching Regulators
Mfr	Vicor Corporation
Package	Tray
Product Status	Obsolete
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable (Fixed)
Number of Outputs	1
Voltage - Input (Min)	8V
Voltage - Input (Max)	36V
Voltage - Output (Min/Fixed)	10V (15V)
Voltage - Output (Max)	16V
Current - Output	8A
Frequency - Switching	1.5MHz
Synchronous Rectifier	Yes
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	123-BLGA Module
Supplier Device Package	123-LGA (14x10)
Base Product Number	PI3305
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
California Prop 65	Warning Information
Win Source Part Number	1340520-PI3305-00-LGIZ
Ultra Librarian 3D Model	Ultra Librarian PI3305-00-LGIZ CAD Model

Alternative Products

Description

The Vicor Corporation PI3305-00-LGIZ is a DC DC switching regulator that is part of the integrated circuits (ICs) power management (PMIC) voltage regulators.

Output Type: Adjustable (Fixed)
Function: Step-Down
Topology: Buck
Frequency - Switching: 1.5MHz
Voltage - Output (Max): 16V
Output Configuration: Positive
Voltage - Input: 8V ~ 36V
Synchronous Rectifier: Yes
Package / Case: 123-BLGA Module
Supplier Device Package: 123-LGA (14x10)
Standard Package: 10
ECCN: EAR99
REACH Status: REACH unaffected
HTSUS: 8542.39.0001
Status: Obsolete
California Prop 65: Warning Information
