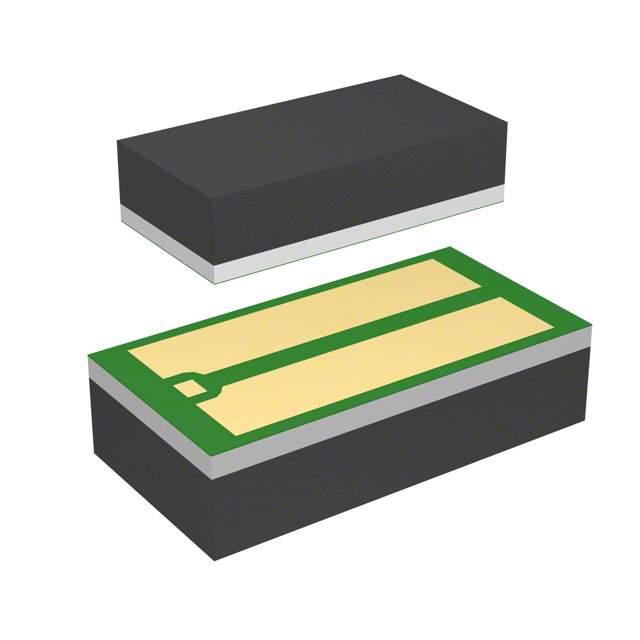

This electronic component is a N-Channel MOSFET (Metal Oxide) transistor, part of the Picor® µRDS(on) FET® series and is manufactured by an unspecified manufacturer.

• Channel Type: N-Channel
• Drain to Source Voltage: 5 V
• Power Dissipation: 3.1W (Ta)
• Package Type: 3-FLGA
• Supplier Device Package: 3-LGA (4.1x8)
• Temperature Range: -55°C ~ 150°C (TJ)
• Drive Voltage: 3.5V and 4.5V
• Continuous Drain Current: 60A (Ta)
• Rds On Maximum: 0.45mOhm @ 60A, 4.5V
• Vgs(th) Maximum: 800mV @ 1mA
• Gate Charge Maximum (Qg): 65 nC @ 4.5 V
• Input Capacitance Maximum (Ciss): 7600 pF @ 5 V
