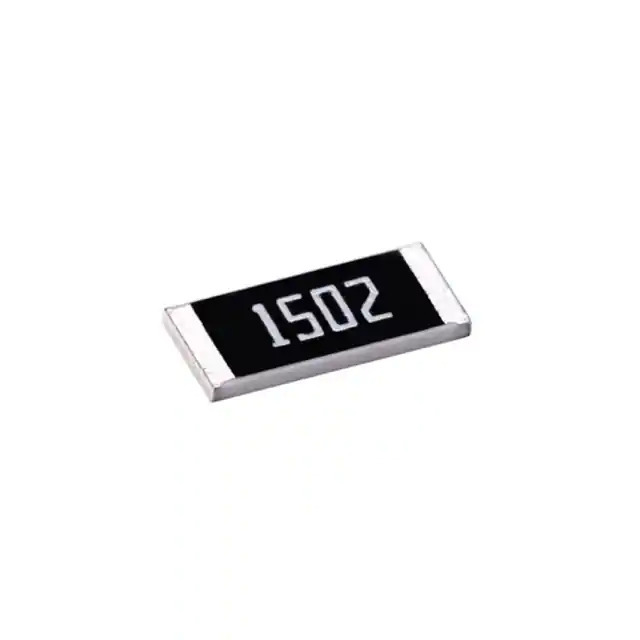

Same model may have multiple batches, images only for reference.
CR-02JL6---22R Viking Tech
Same model may have multiple batches, images only for reference.

CR-02JL6---22R

Part No CR-02JL6---22R
Manufacturer Viking Tech
Catalog Chip Resistor - Surface Mount
Description RES 22 OHM 5% 1/16W 0402
Datasheet
CR-02JL6---22R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Viking Tech
Series CR
Package Tape & Reel
Product Status Active
Resistance 22 Ohms
Tolerance ±5%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Features -
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Ratings -
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 5833.40.0000
Win Source Part Number 1373889-CR-02JL6---22R
Ultra Librarian 3D Model Ultra Librarian CR-02JL6---22R CAD Model

Description

The CR-02JL6---22R is a chip resistor from Viking Tech's CR series.

  • Series: CR
  • Mounting Type: Surface Mount
  • Package Size: 0402 (1005 Metric)
  • Resistance: 22 Ohms
  • Power Rating: 0.063W (1/16W)
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Product Category: Resistors
  • Status: Active
