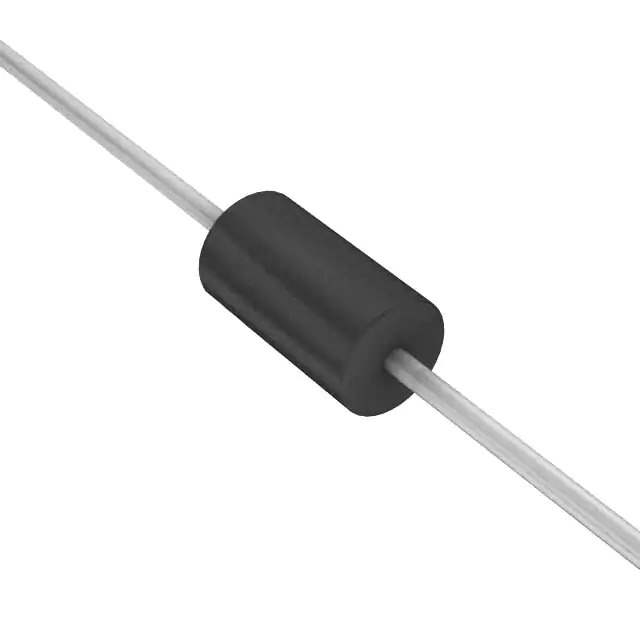

Same model may have multiple batches, images only for reference.

1.5KE82CA-E3/54

Name: 1.5KE82CA-E3/54
Brand: Vishay
SKU: 853495
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	1.5KE82CA-E3/54
Manufacturer	Vishay
Catalog	TVS - Diodes
Description	TVS DIODE 70.1VWM 113VC 1.5KE / 113V Clamp 13.3A Ipp Tvs Diode Through Hole 1.5KE
Datasheet	1.5KE82CA-E3/54 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Vishay
Series	TransZorb®
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	70.1V
Voltage - Breakdown (Min)	77.9V
Voltage - Clamping (Max) @ Ipp	113V
Current - Peak Pulse (10/1000µs)	13.3A
Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-201AA, DO-27, Axial
Supplier Device Package	1.5KE
Base Product Number	1.5KE82
Standard Package	1,400 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	853495-1.5KE82CA-E3/54
Ultra Librarian 3D Model	Ultra Librarian 1.5KE82CA-E3/54 CAD Model

Alternative Products

Description

The 1.5KE82CA-E3/54 is a transient voltage suppressor diode designed for circuit protection applications.

Series: TransZorb series by Vishay
Package: tape and reel
Channel: bidirectional
Reverse Standoff Voltage: 70.1V
Breakdown Voltage: 77.9V
Clamping Voltage @ Peak Pulse Current: 113V
Peak Pulse Power: 1.5kW
Recovery Speed: fast
Peak Pulse Current Rating: 13.3A
Mounting Type: Through-hole
Package: DO-201AA, DO-27 axial
Operating Temperature Range: -55°C to 175°C
Suitable for: general-purpose circuit protection applications.
