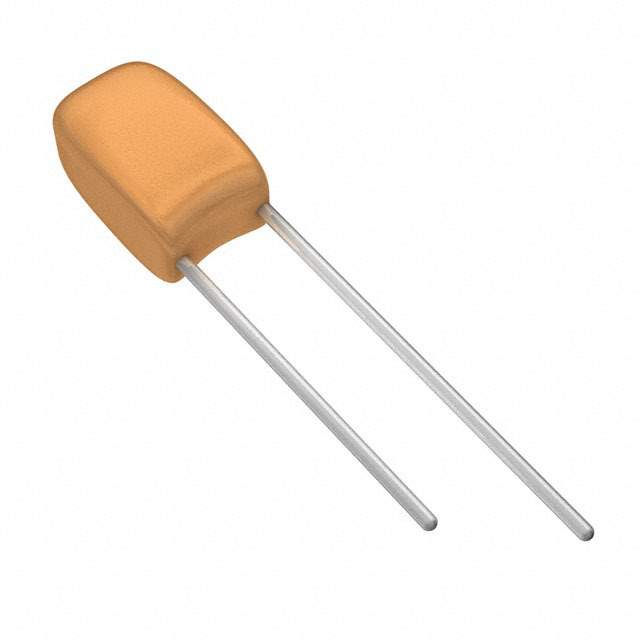

Same model may have multiple batches, images only for reference.

199D685X9035D1V1E3

Name: 199D685X9035D1V1E3
Brand: Vishay
SKU: 969163
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	199D685X9035D1V1E3
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	CAP TANT 6.8UF 10% 35V RADIAL / 6.8 µF Conformal Coated Tantalum Capacitors 35 V Radial
Datasheet	199D685X9035D1V1E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Tantalum Capacitors
Mfr	Vishay Sprague
Series	TANTALEX®, 199D
Package	Bulk
Capacitance	6.8 µF
Tolerance	±10%
Voltage - Rated	35 V
Type	Conformal Coated
Temperature Range - Operating	-55°C ~ 125°C
Lifetime @ Temp.	1000 Hrs @ 85°C
Mounting Type	Through Hole
Package / Case	Radial
Dimension	0.236" Dia (6.00mm)
Height - Seated (Max)	0.400" (10.16mm)
Lead Spacing	0.100" (2.54mm)
Manufacturer Size Code	D
Features	General Purpose
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0040
Other Names	718-1197
Standard Package	500
Win Source Part Number	969163-199D685X9035D1V1E3
Ultra Librarian 3D Model	Ultra Librarian 199D685X9035D1V1E3 CAD Model

Alternative Products

Description

The Vishay Sprague 199D685X9035D1V1E3 is a conformal coated tantalum capacitor with a capacitance of 6.8μF and a voltage rating of 35V.

Capacitance: 6.8μF
Voltage Rating: 35V
Tolerance: ±10%
Lead Spacing: 0.100" (2.54mm)
Temperature Range: -55°C ~ 125°C
Lifetime: 1000 Hrs @ 85°C
Mounting: Through Hole
Package/Case: Radial
