Same model may have multiple batches, images only for reference.

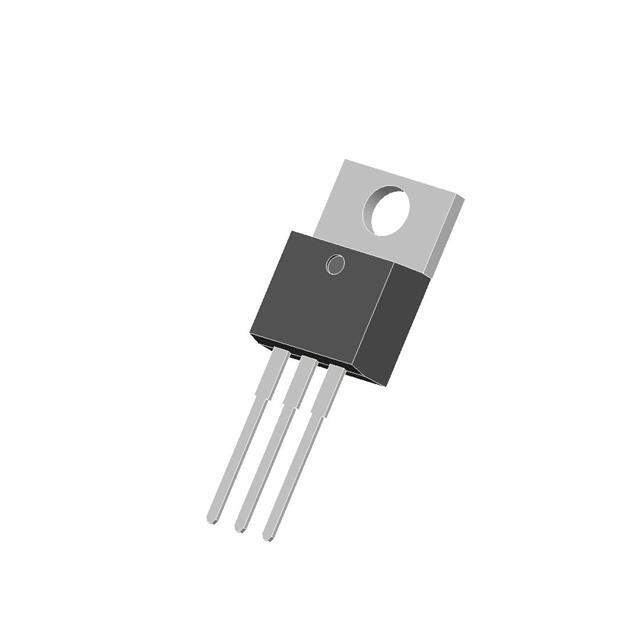

20CTQ040 Real Image
Same model may have multiple batches, images only for reference.

20CTQ040

Part No 20CTQ040
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description 20 AMP SCHOTTKY BARRIER RECTIFIERS | DIODE ARRAY SCHOTTKY 40V TO220AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 40V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Maximum) at If 640mV at 10A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 2mA at 40V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package TO-220-3
Supplier Device Package TO-220AB
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1122908-20CTQ040
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 20CTQ040 CAD Model

Description

The Vishay Semiconductor Diodes Division 20CTQ040 is a pair of common cathode Schottky diodes with a voltage - DC reverse (Vr) (maximum) of 40V.

  • Voltage - DC Reverse (Vr) (Maximum): 40V
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220-3
  • Average Rectified Current (Io): 10A
  • Voltage - Forward (Vf) (Maximum) @ If: 640mV @ 10A
  • Current - Reverse Leakage @ Vr: 2mA @ 40V
  • Series: 20CTQ040
  • Manufacturer Pack Quantity: 1,000
  • Product Status: Obsolete
