Products specifications

Manufacturer Vishay
Win Source Part Number 1122944-20ETS08FPPBF
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 20ETS08FPPBF CAD Model

Description

The 20ETS08FPPBF is a hyperfast rectifier diode manufactured by Vishay Semiconductors. This device is engineered for high-frequency applications requiring minimal switching losses and efficient rectification. It is part of Vishay's line of robust power semiconductors.

Applications

  • Output Rectification of SMPS
  • Freewheeling diode in converters and motor control circuits
  • Power inverters
  • High-frequency welding equipment
  • UPS (Uninterruptible Power Supplies)

Features

  • Hyperfast recovery time
  • High forward surge current capability
  • Low forward voltage drop
  • Operating junction temperature: -40°C to +150°C
  • RoHS compliant
  • Isolated Base

Benefits

  • Minimized switching losses in high-frequency circuits, leading to improved efficiency
  • Enhanced system robustness due to high surge current handling capabilities
  • Reduced power dissipation and thermal stress because of low forward voltage drop
  • Suitable for use in a wide range of environments due to wide operating temperature range
  • Environmentally friendly due to RoHS compliance

Additional Details

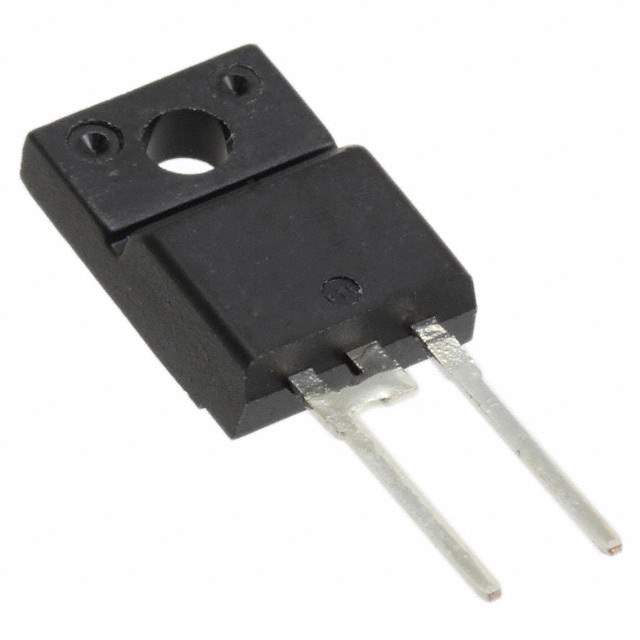

The 20ETS08FPPBF has a maximum repetitive reverse voltage (VRRM) of 800V and a maximum average forward current (IF(AV)) of 20A. The hyperfast recovery time significantly reduces reverse recovery losses. The device is commonly mounted to a heatsink for thermal management. It is available in a TO-220FPAC package which is fully isolated.
