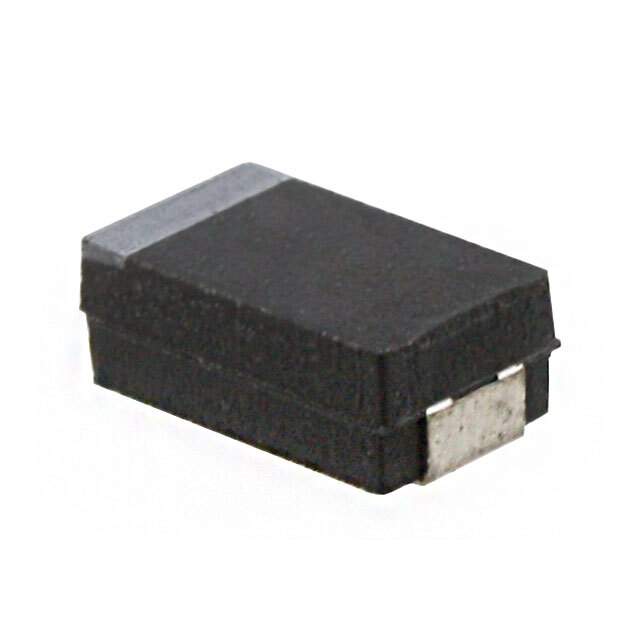

The 293D106X0035D2T is a solid tantalum chip capacitor manufactured by Vishay. It belongs to the 293D series, recognized for its molded case, robust construction, and excellent volumetric efficiency, making it suitable for diverse applications.

Applications

• Power supply decoupling
• Filtering in electronic circuits
• Signal processing applications
• Embedded systems
• DC-DC converters

Features

• Molded Case: Provides mechanical protection and precise dimensions for automated assembly.
• Solid Tantalum Construction: Ensures reliability and stability over a wide temperature range.
• RoHS Compliant: Meets environmental standards for lead-free manufacturing.
• High Volumetric Efficiency: Offers large capacitance values in a small footprint.
• Capacitance Value: 10µF (microfarads)
• Voltage Rating: 35V (volts)
• Operating Temperature Range: Typically -55°C to +125°C, consult the datasheet for exact specifications.

Benefits

• High Reliability: Solid tantalum construction ensures long-term stability and performance.
• Compact Size: Allows for use in space-constrained applications.
• Easy to Integrate: Surface-mount design enables automated assembly processes.
• Stable Performance: Provides consistent electrical characteristics over a wide range of operating conditions.
• Low ESR: Contributes to efficient circuit operation by minimizing power losses.

Additional Details

The 293D series capacitors are widely used in various electronic devices, including consumer electronics, industrial equipment, and telecommunications. The "D2T" suffix indicates the packaging format, typically tape and reel for automated pick-and-place machines. The 106 indicates a capacitance of 10 microfarads, and the 0035 indicates a voltage rating of 35V. Always refer to the manufacturer's datasheet for comprehensive specifications, including ESR, ripple current ratings, and temperature derating curves.
