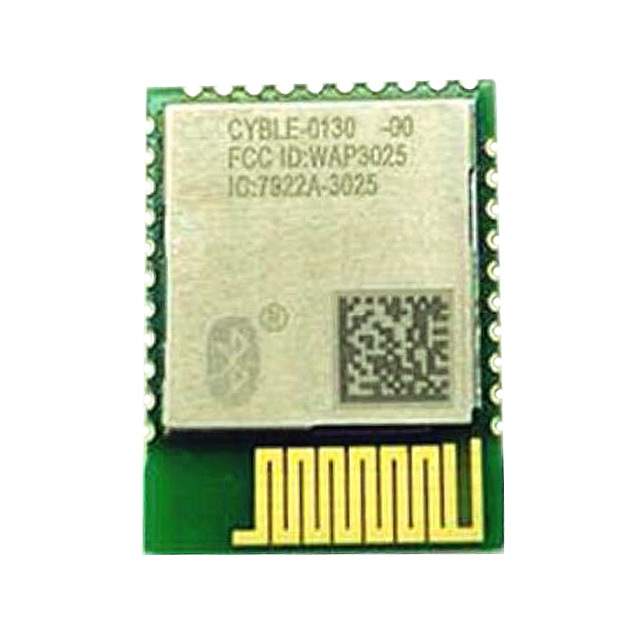

CYBLE-013025-00 Real Image
Same model may have multiple batches, images only for reference.

CYBLE-013025-00

Part No CYBLE-013025-00
Manufacturer Cypress Semiconductor Corp
Catalog RF Receivers
Description RX TXRX MOD BLE 4.1 TRC ANT SMD  /  Bluetooth Bluetooth v4.1 Transceiver Module 2.402GHz ~ 2.48GHz Integrated, Trace Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Cypress Semiconductor Corp
Series EZ-BLE™ PRoC™
Package Tape & Reel
RF Family/Standard Bluetooth
Protocol Bluetooth v4.1
Modulation GFSK
Frequency 2.402GHz ~ 2.48GHz
Data Rate 1.5Mbps
Power - Output 4dBm
Sensitivity -94dBm
Serial Interfaces I2C, SPI, UART
Antenna Type Integrated, Trace
Memory Size 128kB Flash, 60kB SRAM
Voltage - Supply 2.3V ~ 3.6V
Current - Receiving 26mA
Current - Transmitting 22mA
Mounting SMD (SMT)
Temperature Range - Operating -30°C ~ 85°C (TA)
Package / Case 31-SMD Module
Base Product Number CYBLE-013025
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.39.0001
Other Names 428-4512-1,428-4512-2,428-4512-6
Standard Package 500
Win Source Part Number 1201973-CYBLE-013025-00
Ultra Librarian 3D Model Ultra Librarian CYBLE-013025-00 CAD Model

Description

The CYBLE-013025-00 is an RF transceiver module manufactured by Cypress Semiconductor Corp.

  • Frequency Range: 2.402GHz to 2.48GHz
  • Protocol: Bluetooth v4.1
  • Data Rate: 1.5Mbps
  • Memory: 128kB Flash and 60kB SRAM
  • Antenna Type: integrated trace
  • Output Power: 4dBm
  • Sensitivity: -94dBm
  • Receiving Current: 26mA
  • Transmitting Current: 22mA
  • Voltage Supply: 2.3V to 3.6V
  • Win Source Part Number: 1201973-CYBLE-013025-00
