Same model may have multiple batches, images only for reference.

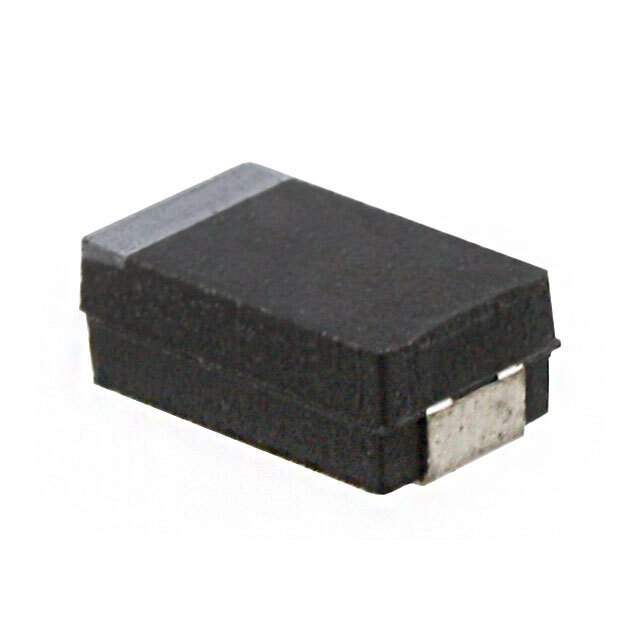

293D107X9020D2TE3 Real Image
Same model may have multiple batches, images only for reference.

293D107X9020D2TE3

Part No 293D107X9020D2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 100UF 10% 20V 2917
Datasheet
293D107X9020D2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay Sprague
Packaging Reel
Capacitance 100μF
Tolerance ±10%
Voltage - Rated 20V
Type Molded
ESR (Equivalent Series Resistance) 600mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 2917 (7343 Metric)
Parts Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 728772-293D107X9020D2TE3
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 293D107X9020D2TE3 CAD Model

Description

The 293D107X9020D2TE3 is a molded surface mount capacitor.

  • Capacitance: 100μF
  • Tolerance: ±10%
  • Voltage Rating: 20V
  • ESR: 600mOhm
  • Manufacturer Size Code: D
  • Package: 2917 (7343 Metric)
  • Height-Seated (Maximum): 0.122" (3.10mm)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (unlimited)
  • Parts Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Lifetime @ Temp: -
