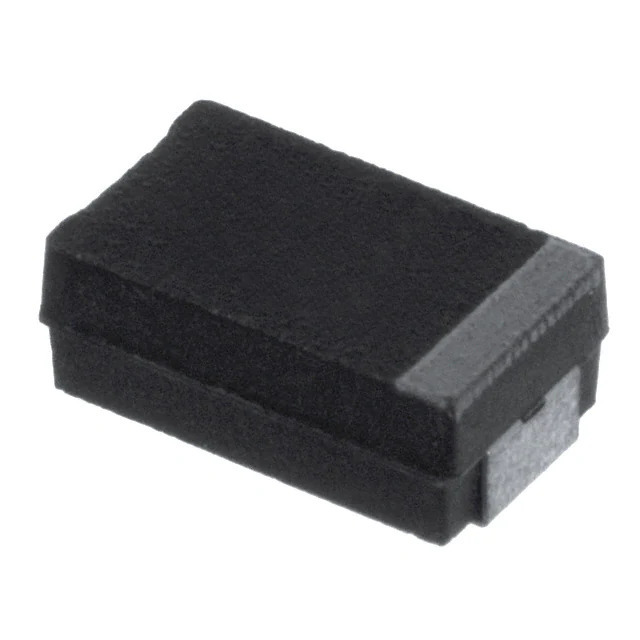

Same model may have multiple batches, images only for reference.

293D226X0010C2TE3

Name: 293D226X0010C2TE3
Brand: Vishay
SKU: 1359803
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	293D226X0010C2TE3
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	CAP TANT 22UF 20% 10V 2312 / 22 µF Molded Tantalum Capacitors 10 V 2312 (6032 Metric) 1.5Ohm
Datasheet	293D226X0010C2TE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Tantalum Capacitors
Mfr	Vishay Sprague
Series	TANTAMOUNT®, 293D
Package	Tape & Reel
Product Status	Active
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	10 V
Type	Molded
ESR (Equivalent Series Resistance)	1.5Ohm
Temperature Range - Operating	-55°C ~ 125°C
Lifetime @ Temp.	-
Mounting Type	Surface Mount
Package / Case	2312 (6032 Metric)
Size / Dimension	0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Max)	0.110" (2.79mm)
Lead Spacing	-
Manufacturer Size Code	C
Features	General Purpose
Failure Rate	-
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0050
Win Source Part Number	1359803-293D226X0010C2TE3
Ultra Librarian 3D Model	Ultra Librarian 293D226X0010C2TE3 CAD Model

Alternative Products

Description

The Vishay Sprague TANTAMOUNT® 293D series is a range of tantalum capacitors designed for general-purpose applications.

Capacitance: 22µF
Voltage Rating: 10V
Package Type: Molded
Mounting Type: Surface Mount
Tolerance: ±20%
ESR: 1.5 Ohm @ 100kHz
Size: 0.236" length x 0.126" width
Height: 0.110" when seated
REACH Regulations: Unaffected
ECCN Classification: EAR99
Temperature Range: -55°C to 125°C
Packaging: Tape and Reel
