Same model may have multiple batches, images only for reference.

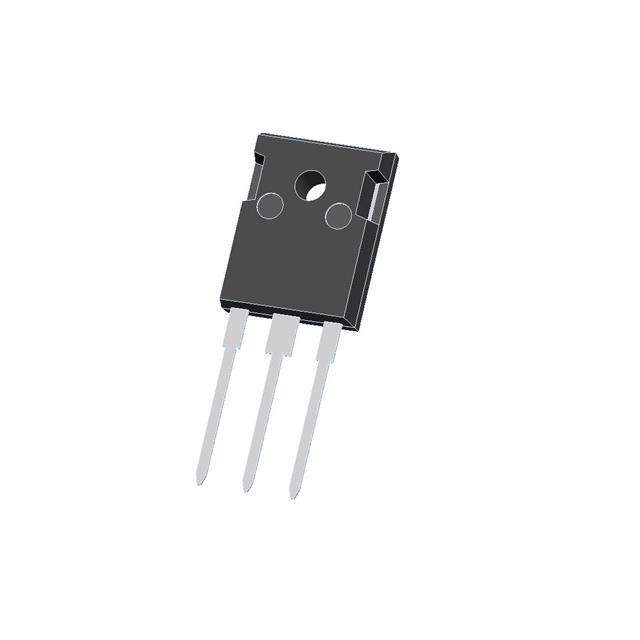

40CPQ050 Real Image
Same model may have multiple batches, images only for reference.

40CPQ050

Part No 40CPQ050
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE ARRAY SCHOTTKY 50V TO247AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 50V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Maximum) at If 530mV at 20A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 1.7mA at 50V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-247-3
Supplier Device Package TO-247AC
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1128568-40CPQ050
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 40CPQ050 CAD Model

Description

The 40CPQ050 Schottky diode is designed for use in a variety of applications.

  • Product: 40CPQ050
  • Manufacturer: Vishay
  • Type: Schottky Diode
  • Maximum Reverse Voltage: 50V
  • Current Rating: 20A
  • Status: Obsolete
  • Package: TO-247AC
  • Mounting: Through-hole
  • Operating Temperature Range: -55°C to 150°C
  • Format: Tube
  • Manufacturer Pack Quantity: 500
