63CPQ100
Same model may have multiple batches, images only for reference.

63CPQ100

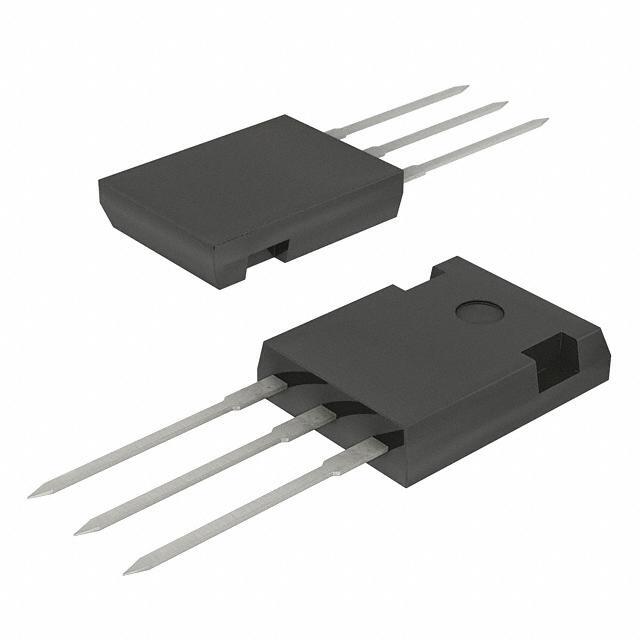

Part No 63CPQ100
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 100V TO247 / Diode Array 1 Pair Common Cathode 100 V 30A Through Hole TO-247-3
Datasheet
63CPQ100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Vishay
Package Tube
Product Status Obsolete
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 770 mV @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 100 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AC
Base Product Number 63CPQ
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 849602-63CPQ100
Ultra Librarian 3D Model Ultra Librarian 63CPQ100 CAD Model

Description

The 849602-63CPQ100 is a diode array from Vishay.

  • Diode Type: Schottky
  • Maximum Reverse Voltage: 100 V
  • Forward Voltage: 770 mV @ 30 A
  • Current Rating: 30A
  • Mounting Type: Through-Hole
  • Package: Tube
