Same model may have multiple batches, images only for reference.

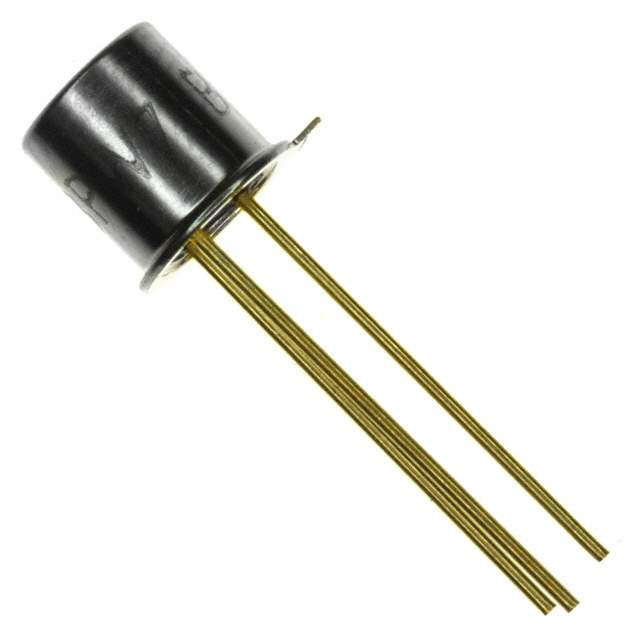

BPW76A Real Image
Same model may have multiple batches, images only for reference.

BPW76A

Part No BPW76A
Manufacturer Vishay
Catalog Optical Sensors - Phototransistors
Description Silicon NPN Phototransistor
Datasheet
BPW76A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay Semiconductor Opto Division
Packaging Bulk
Voltage - Collector Emitter Breakdown (Maximum) 70V
Current - Collector (Ic) (Maximum) 50mA
Current - Dark (Id) (Maximum) 100nA
Wavelength 850nm
Viewing Angle 80°
Power - Max 250mW
Mounting Style Through Hole
Orientation Top View
Operating Temperature Range -40°C ~ 125°C (TA)
Package TO-206AA, TO-18-3 Metal Can
Manufacturer Vishay
Manufacturer Homepage www.vishay.com
Win Source Part Number 730090-BPW76A
Popularity Medium
Supply and Demand Status Balance
Family Name BPW76
Introduction Date July 29, 2008
ECCN EAR99
Country of Origin Philippines
Halogen Free Unknown
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian BPW76A CAD Model

Description

The Vishay BPW76A is a medium popularity electronic component that comes in a TO-206AA, TO-18-3 Metal Can package.

  • Manufacturer: Vishay Semiconductor Opto Division
  • Manufacturer Homepage: www.vishay.com
  • Category: Sensor/transducer
  • Maximum Power: 250mW
  • Viewing Angle: 80°
  • Wavelength: 850nm
  • Current Collector (Ic) (maximum): 50mA
  • Voltage Collector Emitter Breakdown (maximum): 70V
  • Current Dark (Id) (maximum): 100nA
