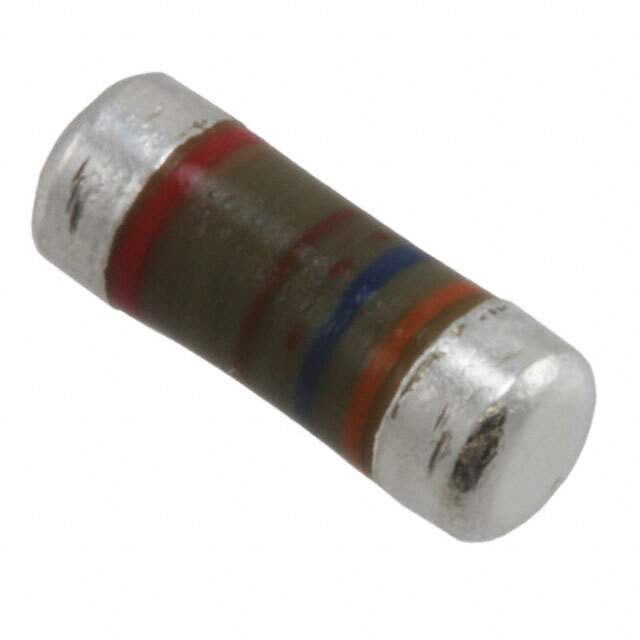

Same model may have multiple batches, images only for reference.
CMB02070X2200FB200 Vishay
Same model may have multiple batches, images only for reference.

CMB02070X2200FB200

Part No CMB02070X2200FB200
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description CMB 0207 1% B2 220R
Datasheet
CMB02070X2200FB200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1304364-CMB02070X2200FB200
Package Tape & Reel (TR)
Product Status Active
Resistance 220 Ohms
Tolerance ±1%
Power (Watts) 1W
Composition Carbon Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Operating Temperature -55°C ~ 155°C
Package / Case MELF, 0207
Ratings AEC-Q200
Supplier Device Package 0207
Size / Dimension 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
Number of Terminations 2
Manufacturer Vishay
Category Resistors- Chip Resistor - Surface Mount
Part Status Active
Packaging  Tape & Reel (TR)
Ultra Librarian 3D Model Ultra Librarian CMB02070X2200FB200 CAD Model

Description

CMA 0204 and CMB 0207 carbon film MELF resistors with advanced pulse load capability are the perfect choice for the protection of circuitry with signal or mains input lines from surge pulses. The resistors are also suitable for circuits exposed to high levels of electromagnetic interference or electrostatic discharge. The applications are in all fields of automotive, telecommunication, industrial, and medical equipment.
