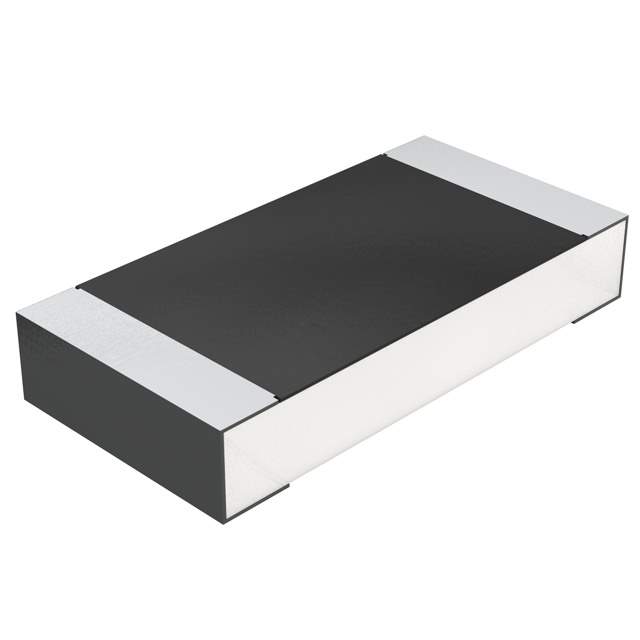

Same model may have multiple batches, images only for reference.

CRCW120656K0FKEA

Name: CRCW120656K0FKEA
Brand: Vishay
SKU: 1132494
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CRCW120656K0FKEA
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES SMD 56K OHM 1% 1/4W 1206 / 56 kOhms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200 Thick Film
Datasheet	CRCW120656K0FKEA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Vishay Dale
Series	CRCW
Package	Tape & Reel
Resistance	56 kOhms
Tolerance	±1%
Power (Watts)	0.25W, 1/4W
Composition	Thick Film
Features	Automotive AEC-Q200
Temperature Coefficient	±100ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	1206 (3216 Metric)
Supplier Device Package	1206
Ratings	AEC-Q200
Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.024" (0.60mm)
Number of Terminations	2
Base Product Number	CRCW1206
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0030
Other Names	541-56.0KFTR,541-56.0KFDKR,D25/CRCW1206 100 56K 1% ET1 E3,541-56.0KFCT
Standard Package	5,000
Win Source Part Number	1132494-CRCW120656K0FKEA
Ultra Librarian 3D Model	Ultra Librarian CRCW120656K0FKEA CAD Model

Alternative Products

Description

The CRCW120656K0FKEA chip resistor from Vishay Dale is a surface mountable, thick film resistor that is ideal for use in a wide range of applications.

Resistance: 56 kOhms
Power: 0.25W, 1/4W
Tolerance: ±1%
Temperature Coefficient: ±100ppm/°C
AEC-Q200 Rated: yes
Operating Temperature Range: -55°C to 155°C
Package: 1206 (3216 Metric)
Height: 0.024" (0.60mm)
Package Type: tape and reel
Units Per Package: 5,000 units
