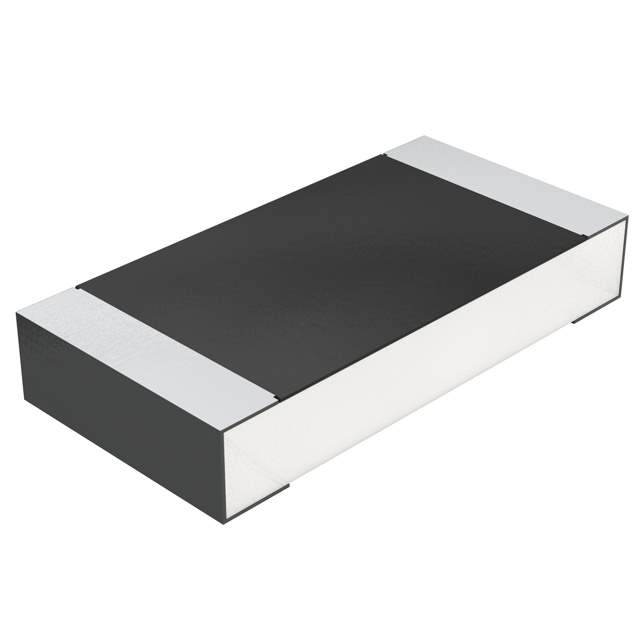

CRCW1206820RJNEA Real Image
Same model may have multiple batches, images only for reference.

CRCW1206820RJNEA

Part No CRCW1206820RJNEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 820 OHM 5% 1/4W 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Dale
Packaging Reel
Resistance 820 Ohms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Manufacturer Package 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.126" L x 0.063" W
Height - Seated (Maximum) 0.024" (0.60mm)
Number of Terminations 2
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 808876-CRCW1206820RJNEA
Ultra Librarian 3D Model Ultra Librarian CRCW1206820RJNEA CAD Model

Description

The CRCW1206820RJNEA is a thick film product manufactured by Vishay Dale.

  • Win Source Part Number: 808876-CRCW1206820RJNEA
  • Packaging: Reel
  • Features: Automotive AEC-Q200
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Power (Watts): 0.25W, 1/4W
  • Number of Terminations: 2
  • Resistance: 820 Ohms
  • Supplier Device Package: 1206
  • Operating Temperature: -55°C ~ 155°C
  • Dimension: 0.126" L x 0.063" W
  • Manufacturer Package: 1206 (3216 Metric)
  • Manufacturer Pack Quantity: 5,000
  • MSL Level: 1 (Unlimited)
