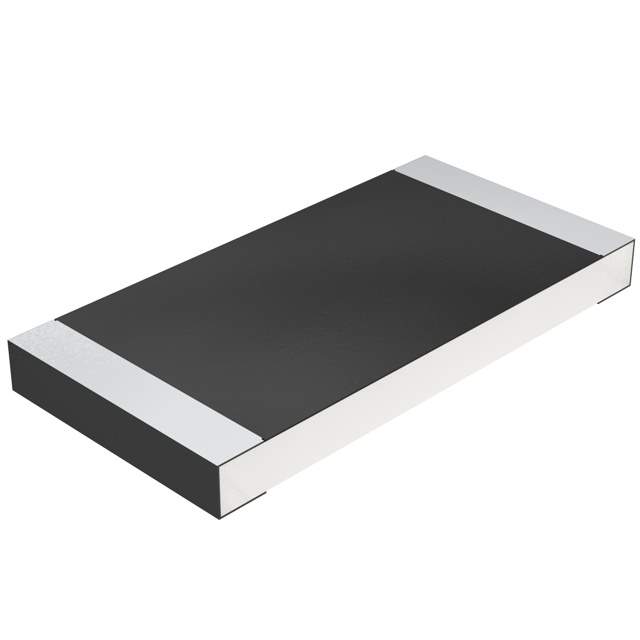

CRCW2512390KJNEG Real Image
Same model may have multiple batches, images only for reference.

CRCW2512390KJNEG

Part No CRCW2512390KJNEG
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 390K OHM 5% 1W 2512
Datasheet
CRCW2512390KJNEG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Resistance (Ohms) 390k
Tolerance ±5%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±200ppm/°K
Temperature Range - Operating -55°C to 155°C
Case / Package 2512
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Win Source Part Number 080022-CRCW2512390KJNEG
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Automotive, Industrial, Power Management, Consumer Electronics, Portable Devices
Ultra Librarian 3D Model Ultra Librarian CRCW2512390KJNEG CAD Model

Description

Product Overview

The CRCW2512390KJNEG is designed as a versatile surface-mount resistor rated at 390 kΩ, accommodating high-resistance application needs.

Applications

  • High-Voltage Divider Circuits
  • Amplifier Bias Networks
  • Control Systems
  • Medical Devices
  • Measurement Tools

Features and Benefits

  • High Resistance Capability: Ideal for specialized electronic applications requiring large resistances.
  • Low Leaded Design: Minimizes unwanted inductance and capacitance.
  • Reliability: Consistent performance over a broad temperature range.
  • Space-Saving Design: Compact footprint aids in efficient circuit design.

Additional Details

This component complies with stringent circuit stability requirements, providing unparalleled dependability.
