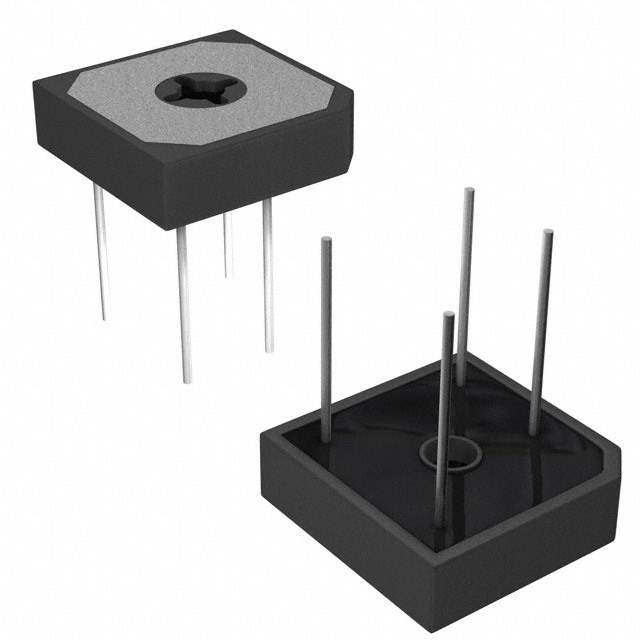

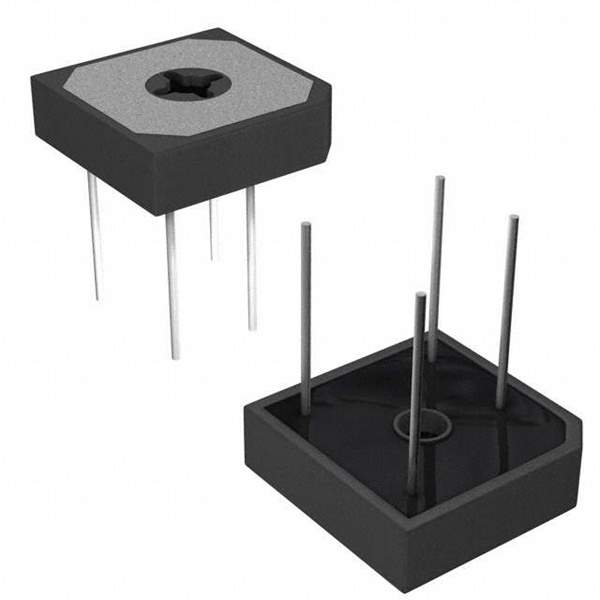

GBPC3504W-E4/51 Real Image
Same model may have multiple batches, images only for reference.

GBPC3504W-E4/51

Part No GBPC3504W-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 35A 400V GBPC-W
Datasheet
GBPC3504W-E4/51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400V
Current - Average Rectified (Io) 35A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 17.5A
Current - Reverse Leakage @ Vr 5μA @ 400V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBPC-W
Win Source Part Number 131728-GBPC3504W-E4/51
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GBPC3504W-E4/51 CAD Model

Description

The Vishay GBPC3504W-E4/51 standard technology single-phase diode.

  • Average Rectified Current: 35A
  • Forward Voltage: 1.1V @ 17.5A
  • Reverse Leakage Current: 5μA @ 400V
  • Peak Reverse Voltage: 400V
  • Mounting: Through-Hole
  • Packaging: Bulk
  • Operating Temperature: -55°C to 150°C (TJ)
  • Case/Package: GBPC-W
  • Popularity: Medium
