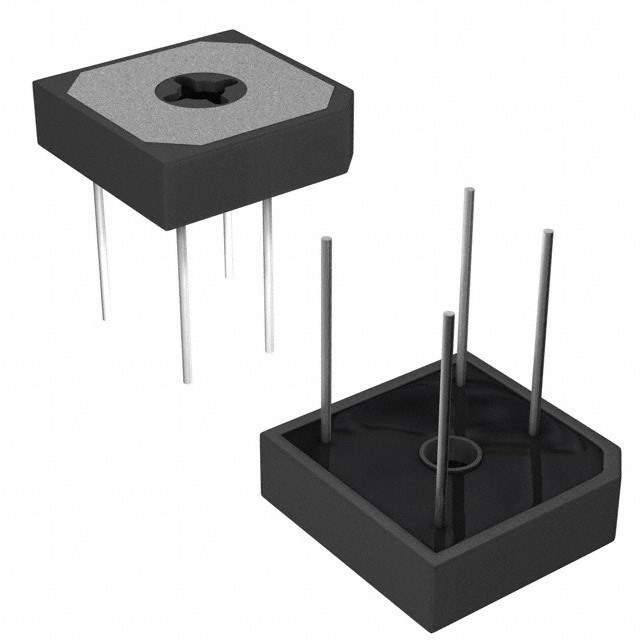

Same model may have multiple batches, images only for reference.

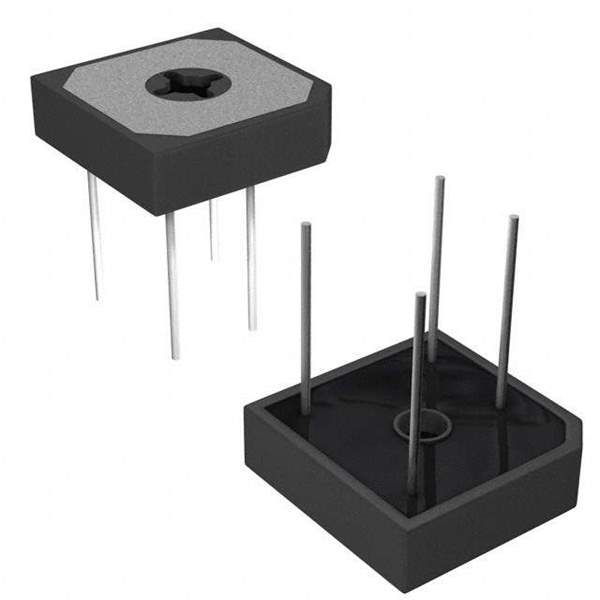

GBPC3506W-E4/51 Real Image
Same model may have multiple batches, images only for reference.

GBPC3506W-E4/51

Part No GBPC3506W-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description Glass Passivated Single-Phase Bridge Rectifier | BRIDGE RECT 1P 600V 35A GBPC-W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 600V
Current - Average Rectified (Io) 35A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 17.5A
Current - Reverse Leakage at Vr 5μA at 600V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-Square, GBPC-W
Supplier Device Package GBPC-W
Family Part Number GBPC3506
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1176997-GBPC3506W-E4/51
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GBPC3506W-E4/51 CAD Model

Description

The Vishay Semiconductor Diodes Division GBPC3506W-E4/51 is a standard technology single phase diode that is commonly used in discrete semiconductor products.

  • Current - Average Rectified (Io): 35A
  • Voltage - Peak Reverse (Maximum): 600V
  • Package: bulk
  • Mounting: through hole
  • Temperature Range: -55°C to 150°C
  • Supply and Demand Status: limited
  • Popularity: medium
