Same model may have multiple batches, images only for reference.

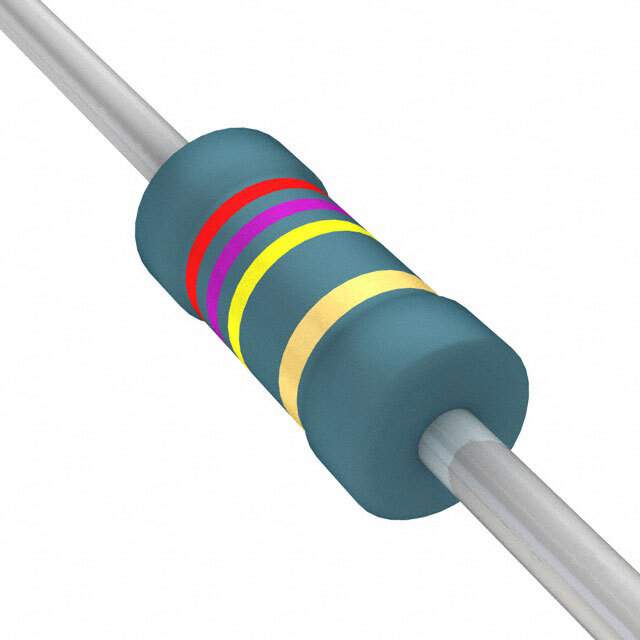

HVR3700002703JR500 Real Image
Same model may have multiple batches, images only for reference.

HVR3700002703JR500

Part No HVR3700002703JR500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 270K OHM 1/2W 5% AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay BC Components
Packaging Reel
Resistance 270 kOhms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Metal Film
Features Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Manufacturer Package Axial
Supplier Device Package Axial
Dimension 0.157" Dia x 0.394" L (4.00mm x 10.00mm)
Number of Terminations 2
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804054-HVR3700002703JR500
Ultra Librarian 3D Model Ultra Librarian HVR3700002703JR500 CAD Model

Description

The Vishay BC Components HVR3700002703JR500 is a metal film composition resistor.

  • Resistance: 270 kOhms
  • Power Rating: 0.5W or 1/2W
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Package: Axial
  • Packaging: reel
  • Supply and Demand Status: balanced
  • Recommended Use: flame retardant coating, high voltage, pulse withstanding, safety
