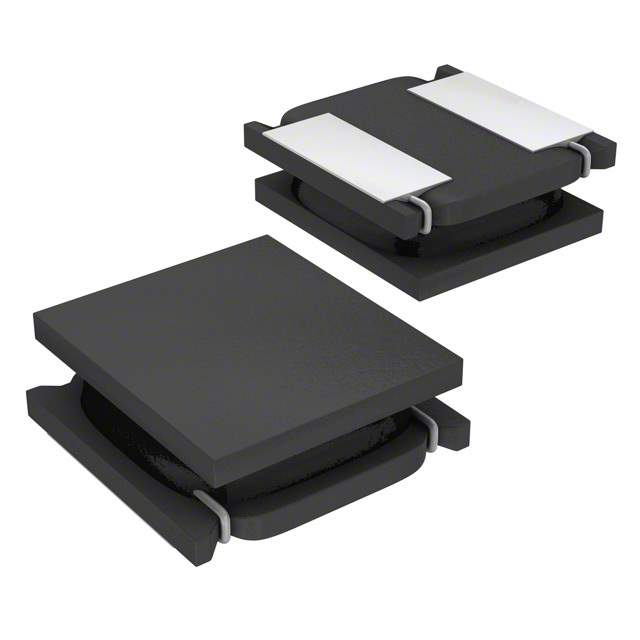

Same model may have multiple batches, images only for reference.

IFSC1111AZER100M01

Name: IFSC1111AZER100M01
Brand: Vishay
SKU: 1023281
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IFSC1111AZER100M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 10UH 800MA 340MOHM SMD / 10 µH Shielded Inductor 800 mA 340mOhm Max Nonstandard
Datasheet	IFSC1111AZER100M01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IFSC-1111AZ
Package	Tape & Reel
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	800 mA
Current - Saturation (Isat)	520mA
Shielding	Shielded
DC Resistance (DCR)	340mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.117" L x 0.117" W (3.00mm x 3.00mm)
Height - Seated (Max)	0.039" (1.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	541-1396-6,541-1396-2,541-1396-1
Standard Package	2,000
Win Source Part Number	1023281-IFSC1111AZER100M01
Ultra Librarian 3D Model	Ultra Librarian IFSC1111AZER100M01 CAD Model

Alternative Products

Description

The IFSC1111AZER100M01 is a fixed inductor from Vishay Dale.

Package: Nonstandard
Shielding: Shielded
Inductance: 10 µH
Tolerance: ±20%
DC Resistance (DCR): 340mOhm Max
Maximum Current Rating: 800 mA
