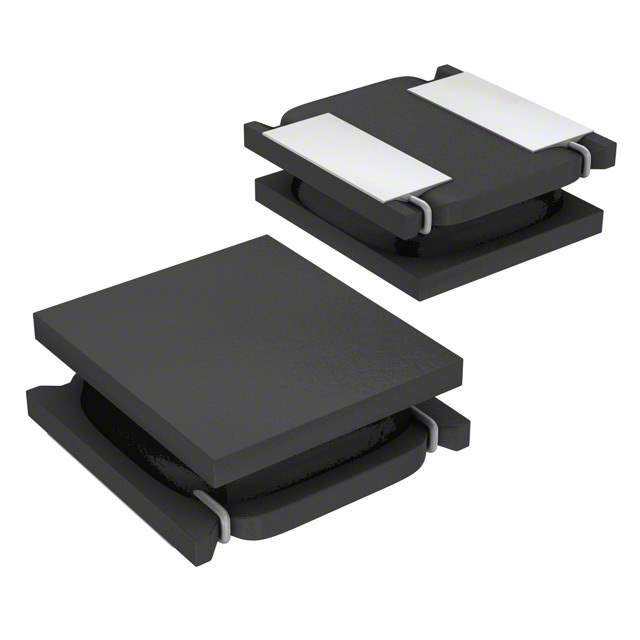

Same model may have multiple batches, images only for reference.

IFSC1111AZER220M01

Name: IFSC1111AZER220M01
Brand: Vishay
SKU: 1192892
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IFSC1111AZER220M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 22UH 500MA 750MOHM SMD / 22 µH Shielded Inductor 500 mA 750mOhm Max Nonstandard
Datasheet	IFSC1111AZER220M01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IFSC-1111AZ
Package	Tape & Reel
Inductance	22 µH
Tolerance	±20%
Current Rating (Amps)	500 mA
Current - Saturation (Isat)	350mA
Shielding	Shielded
DC Resistance (DCR)	750mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.117" L x 0.117" W (3.00mm x 3.00mm)
Height - Seated (Max)	0.039" (1.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	541-1397-2,541-1397-6,541-1397-1
Standard Package	2,000
Win Source Part Number	1192892-IFSC1111AZER220M01
Ultra Librarian 3D Model	Ultra Librarian IFSC1111AZER220M01 CAD Model

Alternative Products

Description

This fixed inductor manufactured by Vishay Dale has an inductance of 22 µH and a tolerance of ±20%.

Inductance: 22 µH
Tolerance: ±20%
Win Source Part Number: 1192892-IFSC1111AZER220M01
Mounting Type: Surface Mount Device (SMD)
