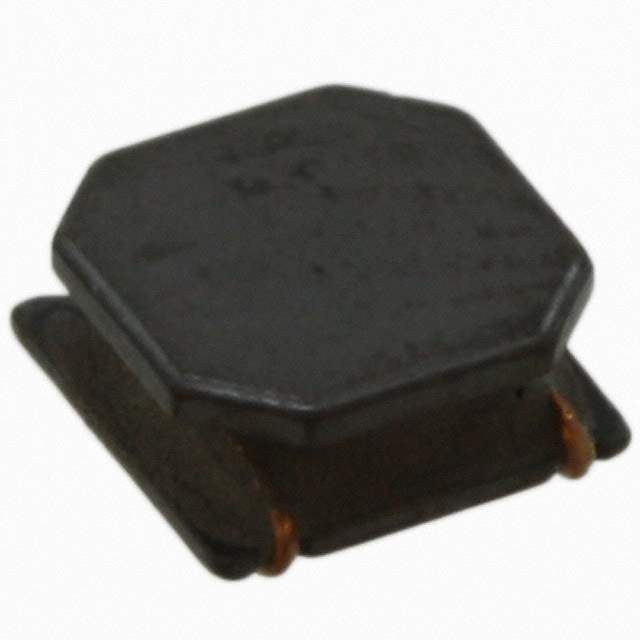

Same model may have multiple batches, images only for reference.

IFSC1515AHER6R8M01

Name: IFSC1515AHER6R8M01
Brand: Vishay
SKU: 1327468
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IFSC1515AHER6R8M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 6.8UH 1.9A 115MOHM SMD / 6.8 µH Shielded Inductor 1.9 A 115mOhm Max Nonstandard
Datasheet	IFSC1515AHER6R8M01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Vishay Dale
Packaging	Reel - TR
Inductance	6.8 µH
Tolerance	±20%
Current Rating (Amps)	1.9 A
Current - Saturation (Isat)	1.5A
Shielding	Shielded
DC Resistance (DCR)	115mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)	0.075" (1.90mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	IFSC1515AHER6R8M01-ND,541-IFSC1515AHER6R8M01CT,541-IFSC1515AHER6R8M01TR,541-IFSC1515AHER6R8M01DKR
Standard Package	2,000
Win Source Part Number	1327468-IFSC1515AHER6R8M01
Ultra Librarian 3D Model	Ultra Librarian IFSC1515AHER6R8M01 CAD Model

Alternative Products

Description

The Vishay Dale IFSC1515AHER6R8M01 is a fixed inductor that is designed to be surface mounted on a circuit board.

Inductance: 6.8 μH
Tolerance: ±20%
Current Rating: 1.9 A
Current Saturation: 1.5 A
Shielded: Yes
DC Resistance: 115mOhm Max
Case/Package: Nonstandard
Temperature Range: -55°C to 125°C
Packaging: Reel - TR
ROHS3 compliant: Yes
