Same model may have multiple batches, images only for reference.

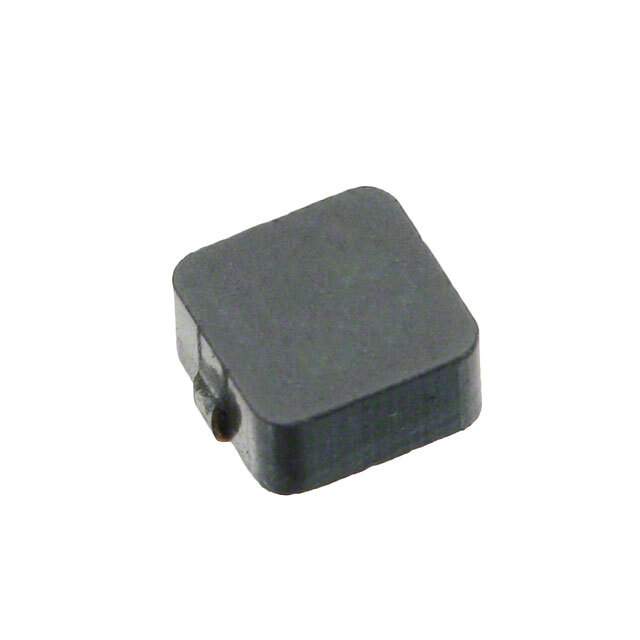

IHLP1212ABER1R0M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP1212ABER1R0M11

Part No IHLP1212ABER1R0M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 1UH 4A 37.5 MOHM SMD / 1 µH Shielded Molded Inductor 4 A 37.5mOhm Max Nonstandard
Datasheet
IHLP1212ABER1R0M11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-1212AB-11
Package Tape & Reel
Type Molded
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 5A
Shielding Shielded
DC Resistance (DCR) 37.5mOhm Max
Frequency - Self Resonant 90MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.144" L x 0.118" W (3.65mm x 3.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 541-2566-2,541-2566-1,541-2566-6,IHLP1212ABER1R0M11-ND
Standard Package 3,000
Win Source Part Number 1064781-IHLP1212ABER1R0M11
Ultra Librarian 3D Model Ultra Librarian IHLP1212ABER1R0M11 CAD Model

Description

The Vishay Dale IHLP1212ABER1R0M11 is a molded fixed inductor that is shielded and has an inductance of 1 µH.

  • Tolerance: ±20%
  • DC Resistance (DCR) Max: 37.5mOhm
  • Package: tape and reel
  • Mounting Type: SMD (SMT)
  • Height, Seated (max): 0.047" (1.20mm)
  • Dimension: 0.144" L x 0.118" W (3.65mm x 3.00mm)
  • Frequency - Self-Resonant: 90MHz
  • Current Rating (amps): 4A
  • Alternative Part: IHLP-1212AB-11 series, SPM4012T-1R0M-LR, FDSD0420-H-1R0M=P3, SRP4020TA-1R0M, FDSD0412-H-1R0M=P3, FDSD0420D-1R0M=P3, and SPM5012T-1R0M-LRIHLP1212ABER1R0M11
  • Operating Temperature: -55°C ~ 125°C
  • HTSUS: 8504.50.4000
