Same model may have multiple batches, images only for reference.

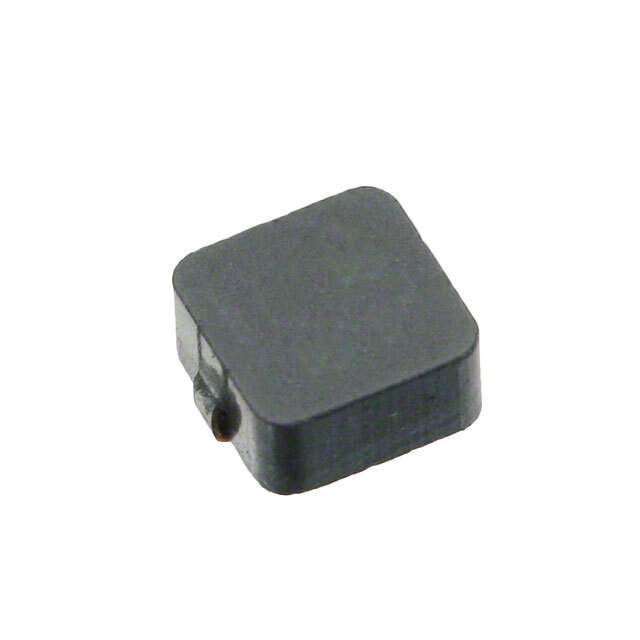

IHLP1212AEER1R5M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP1212AEER1R5M11

Part No IHLP1212AEER1R5M11
Manufacturer Vishay
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 1.5uH 20% 100KHz Powdered Iron 2.7A 0.046Ohm DCR 1212 T/R / FIXED IND 1.5UH 2.7A 46 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay Dale
Packaging Tape and Reel
Type Molded
Inductance 1.5μH
Tolerance ±20%
Current Rating (Amps) 2.7A
Current - Saturation 4.5A
Shielding Shielded
DC Resistance (DCR) 46mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.144" L x 0.118" W (3.65mm x 3.00mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 718634-IHLP1212AEER1R5M11
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name IHLP-1212AE-11
Introduction Date December 06, 2010
ECCN EAR99
Country of Origin China , Israel, United States of America
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian IHLP1212AEER1R5M11 CAD Model

Description

This electronic component is an inductor from Vishay Dale.

  • Type: shielded and has a molded type with SMD mounting style.
  • Inductance: 1.5μH with a tolerance of ±20%.
  • Popularity: high popularity
  • Supply and Demand Status: balanced
  • Manufacturer Pack Quantity: 3000
  • MSL Level: 1 (Unlimited)
  • Dimension: 0.144" L x 0.118" W (3.65mm x 3.00mm)
  • Current Rating: 2.7A
  • Inductance Frequency-Test: 100kHz
