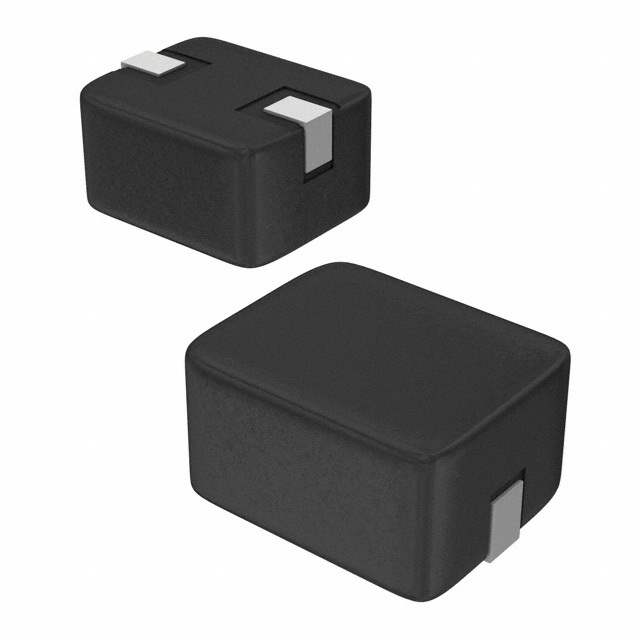

IHLP1212BZER2R2M11

Part No IHLP1212BZER2R2M11
Manufacturer Vishay
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 2.2uH 20% 100KHz Powdered Iron 3A 0.046Ohm DCR 1212 T/R / FIXED IND 2.2UH 3A 46 MOHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Molded
Inductance 2.2μH
Tolerance ±20%
Current Rating 3A
Current - Saturation 3.3A
DC Resistance (DCR) 46 mOhm Max
Frequency - Self Resonant 55MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 56053-IHLP1212BZER2R2M11
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Power Management, Automotive, Computers & Computer Peripherals
Family Name IHLP-1212BZ-11
Introduction Date March 26, 2010
ECCN EAR99
Country of Origin China, Israel, Taiwan, United States of America
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian IHLP1212BZER2R2M11 CAD Model

Description

IHLP1212BZER2R2M11 from Vishay is a fixed inductor designed for space-constrained power designs where stable inductance, current handling, and efficient energy storage are important. Components in this category are commonly selected for DC-DC converters, point-of-load regulation, power filtering, and portable or embedded electronics that need compact magnetic solutions. Engineers often consider Vishay inductors for power management designs in industrial, consumer, automotive-adjacent, and communications equipment, depending on the specific qualification requirements of the end product. For sourcing and long-term design planning, this part should be treated carefully because the current lifecycle status is information not available; teams should confirm product status directly with Vishay or authorized channel partners before committing to new designs. RoHS compliance information is also not available from the provided input, so compliance teams should verify the latest datasheet, declaration, and distributor documentation before procurement or production release.
