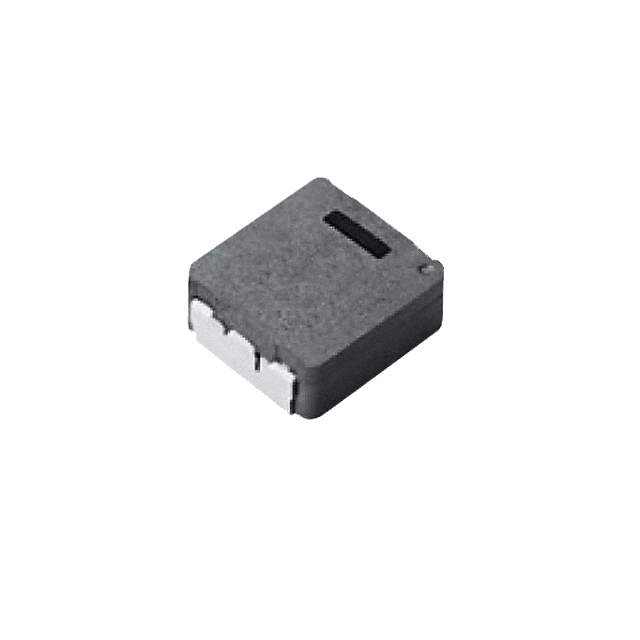

Same model may have multiple batches, images only for reference.

ETQ-P5MR33YLC

Name: ETQ-P5MR33YLC
Brand: Panasonic
SKU: 993807
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ETQ-P5MR33YLC
Manufacturer	Panasonic
Catalog	Fixed Inductors
Description	FIXED IND 330NH 39.7A 1.21 MOHM / 330 nH Shielded Drum Core, Wirewound Inductor 39.7 A 1.21mOhm Max 2-SMD, J-Lead
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Panasonic Electronic Components
Series	PCC-M1050ML
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Metal Composite
Inductance	330 nH
Tolerance	±20%
Current Rating (Amps)	39.7 A
Current - Saturation (Isat)	56.7A
Shielding	Shielded
DC Resistance (DCR)	1.21mOhm Max
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	2-SMD, J-Lead
Dimension	0.429" L x 0.394" W (10.90mm x 10.00mm)
Height - Seated (Max)	0.197" (5.00mm)
Base Product Number	ETQ-P5
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	P122550TR,P122550CT,ETQP5MR33YLC,P122550DKR
Standard Package	500
Win Source Part Number	993807-ETQ-P5MR33YLC
Ultra Librarian 3D Model	Ultra Librarian ETQ-P5MR33YLC CAD Model

Alternative Products

Description

This electronic component is an inductor, coil, or choke with a Win Source Part Number of 993807-ETQ-P5MR33YLC.

Series: PCC-M1050ML
Type: Drum core, wirewound
Packaging: Tape and reel
Shielding: Yes
Inductance: 330 nH
Seated Height: 0.197 inches
Standard Package: 500 units
Mounting Type: SMD (SMT)
Tolerance: ±20%
AEC-Q200 Rating: Yes
Core Material: Metal composite
DC Resistance (DCR): 1.21mOhm Max
Temperature Range: -40°C to 150°C
Dimension: 0.429 inches L x 0.394 inches W (10.90mm x 10.00mm)
Current: 7 A
