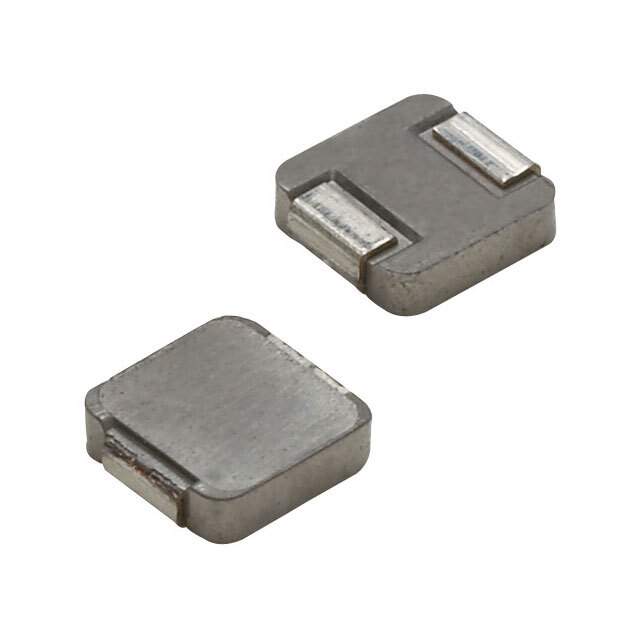

Same model may have multiple batches, images only for reference.

IHLP1616ABER47NMA1

Name: IHLP1616ABER47NMA1
Brand: Vishay
SKU: 1175155
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP1616ABER47NMA1
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	IHLP-1616AB-A1 .047 20% ER E3 / 47 nH Shielded Inductor 13 A 3.75mOhm Max Nonstandard
Datasheet	IHLP1616ABER47NMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHLP-1616AB-A1
Package	Tape & Reel
Material - Core	Metal Composite
Inductance	47 nH
Tolerance	±20%
Current Rating (Amps)	13 A
Current - Saturation (Isat)	32A
Shielding	Shielded
DC Resistance (DCR)	3.75mOhm Max
Frequency - Self Resonant	565MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max)	0.047" (1.20mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	541-IHLP1616ABER47NMA1TR,541-IHLP1616ABER47NMA1CT,541-IHLP1616ABER47NMA1DKR
Standard Package	4,000
Win Source Part Number	1175155-IHLP1616ABER47NMA1
Ultra Librarian 3D Model	Ultra Librarian IHLP1616ABER47NMA1 CAD Model

Alternative Products

Description

The Vishay Dale IHLP-1616AB-A1 is a fixed inductor with an inductance of 47 nH and a tolerance of ±20%.

Shielding: Shielded
Core Material: Metal Composite
Height (Seated): 0.047" (1.20mm)
Standard Package: 4,000
Mounting Type: SMD (SMT)
Operating Temperature: -55°C ~ 125°C
DC Resistance (DCR): 3.75mOhm Max
Current Rating: 13 A
Frequency: 100 kHz
Self-Resonant Frequency: 565MHz
AEC-Q200 Rated: Yes
MSL Level: 1 (Unlimited)
