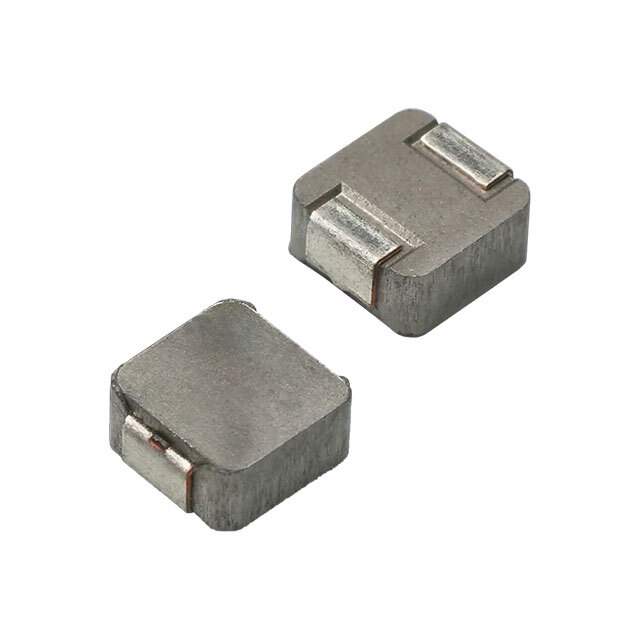

Same model may have multiple batches, images only for reference.

IHLP1616BZER1R0MA1

Name: IHLP1616BZER1R0MA1
Brand: Vishay
SKU: 1327447
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IHLP1616BZER1R0MA1
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	IHLP-1616BZ-A1 1 20% ER E3 / 1 µH Shielded Inductor 3.75 A 37mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Vishay Dale
Packaging	Reel - TR
Material - Core	Metal Composite
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	3.75 A
Current - Saturation (Isat)	8.5A
Shielding	Shielded
DC Resistance (DCR)	37mOhm Max
Frequency - Self Resonant	90MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max)	0.079" (2.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	541-IHLP1616BZER1R0MA1TR,541-IHLP1616BZER1R0MA1CT,541-IHLP1616BZER1R0MA1DKR
Standard Package	4,000
Win Source Part Number	1327447-IHLP1616BZER1R0MA1
Ultra Librarian 3D Model	Ultra Librarian IHLP1616BZER1R0MA1 CAD Model

Alternative Products

Description

The Vishay Dale IHLP1616BZER1R0MA1 is a metal composite fixed inductor with a shielded packaging.

Inductance: 1 μH
Current Rating: 3.75 A
DC Resistance: 37 mΩ
Frequency Range: 100 kHz
AEC-Q200 Rated: Yes
Case/Package: Nonstandard
Height: 0.079"
Mounting Type: Surface Mount
Operating Temperature: -55℃ to 125℃
