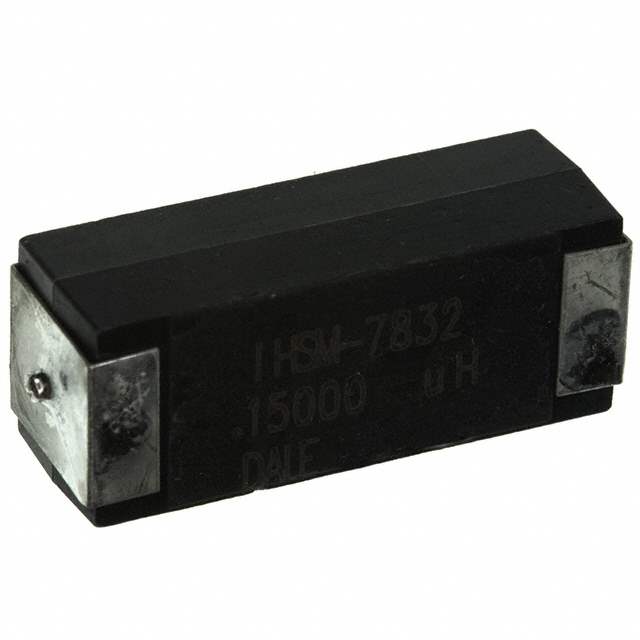

Same model may have multiple batches, images only for reference.

IHSM7832ER220L

Name: IHSM7832ER220L
Brand: Vishay
SKU: 156339
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHSM7832ER220L
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	Inductor Power Molded Wirewound 22uH 15% 1KHz Ferrite 3.8A 0.054Ohm DCR 7832 T/R / FIXED IND 22UH 3.8A 54 MOHM SMD
Datasheet	IHSM7832ER220L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Material - Core	Ferrite
Inductance	22μH
Tolerance	±15%
Current Rating	3.8A
Current - Saturation	1.2A
DC Resistance (DCR)	54 mOhm Max
Temperature Range - Operating	-55°C to 125°C
Frequency - Test	1kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.285" (7.24mm)
Win Source Part Number	017209-IHSM7832ER220L
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Family Name	IHSM-7832
Introduction Date	November 22, 1999
ECCN	EAR99
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian IHSM7832ER220L CAD Model

Alternative Products

Description

This inductor is suitable for use in various electronic devices such as power supplies, DC-DC converters, and more.

Current Rating: 3.8A
Inductance: 22μH
Tolerance: ±15%
Material: ferrite
DC Resistance (DCR): 54 mOhm Max
Operating Temperature Range: -55°C to 125°C
Estimated EOL Date: 2027.
