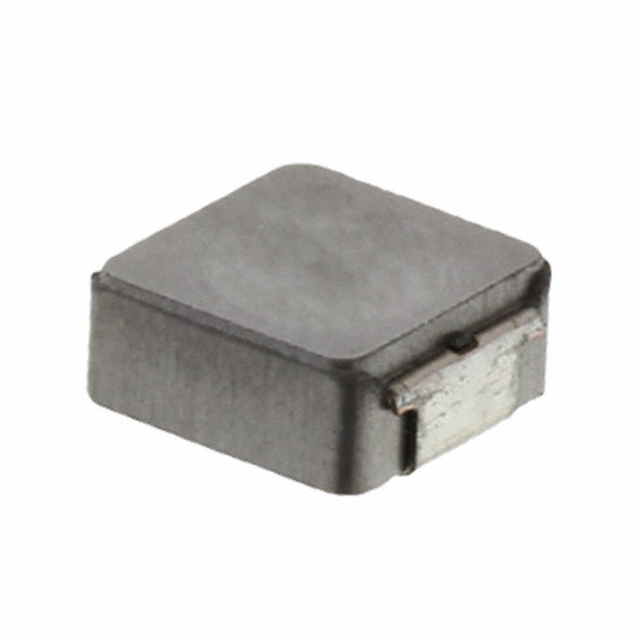

IHLP2525CZER2R2M8A Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

IHLP2525CZER2R2M8A

Part No IHLP2525CZER2R2M8A
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 2.2UH 8.1A 18.3MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Molded
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 8.1 A
Current - Saturation (Isat) 10.8A
Shielding Shielded
DC Resistance (DCR) 18.3mOhm Max
Frequency - Self Resonant 34.3MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 180°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Case / Package Nonstandard
Size / Dimension 0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max) 0.118\
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1532375-IHLP2525CZER2R2M8A
Ultra Librarian 3D Model Ultra Librarian IHLP2525CZER2R2M8A CAD Model
