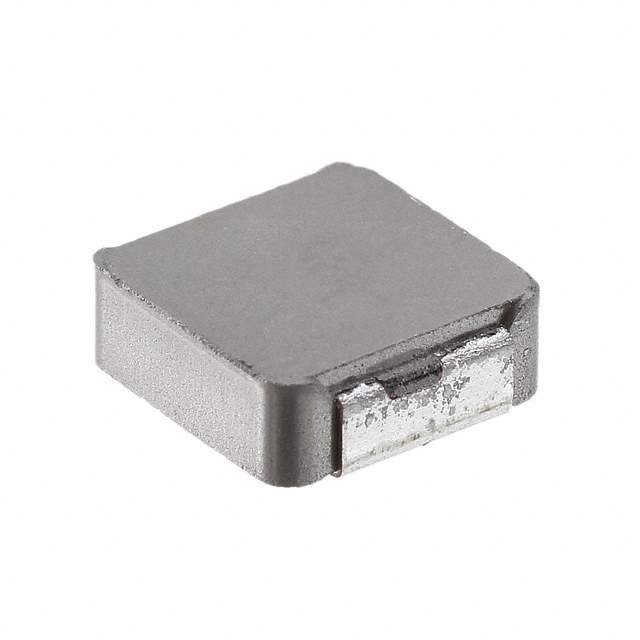

Same model may have multiple batches, images only for reference.

IHLP3232CZER1R0M11

Name: IHLP3232CZER1R0M11
Brand: Vishay
SKU: 1327450
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IHLP3232CZER1R0M11
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 1UH 16A 6.49 MOHM SMD / 1 µH Shielded Molded Inductor 16 A 6.49mOhm Max Nonstandard
Datasheet	IHLP3232CZER1R0M11 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Vishay Dale
Packaging	Reel - TR
Type	Molded
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	16 A
Current - Saturation (Isat)	14.8A
Shielding	Shielded
DC Resistance (DCR)	6.49mOhm Max
Frequency - Self Resonant	51MHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Max)	0.118" (3.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	541-IHLP3232CZER1R0M11TR,541-IHLP3232CZER1R0M11DKR,IHLP3232CZER1R0M11-ND,541-IHLP3232CZER1R0M11CT
Standard Package	1,000
Win Source Part Number	1327450-IHLP3232CZER1R0M11
Ultra Librarian 3D Model	Ultra Librarian IHLP3232CZER1R0M11 CAD Model

Alternative Products

Description

The Vishay Dale IHLP3232CZER1R0M11 is a fixed inductor with a molded type and a shielding feature.

Size/Dimension: 0.340" L x 0.322" W (8.64mm x 8.18mm)
Inductance: 1 µH
Height - Seated (Max): 0.118" (3.00mm)
Tolerance: ±20%
Material-Core: Not Specified
Q @ Freq: Not Specified
Frequency - Self-Resonant: 51MHz
DC Resistance (DCR): 6.49mOhm Max
Temperature Range - Operating: -55°C ~ 125°C
