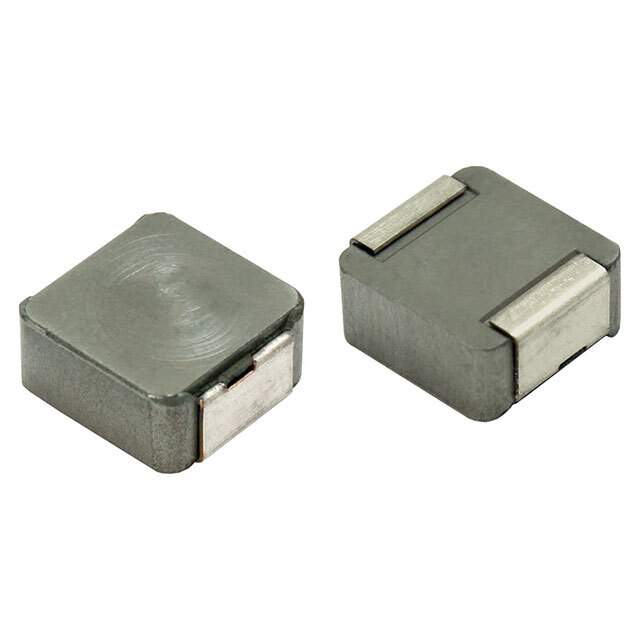

Same model may have multiple batches, images only for reference.

IHLP3232DZER4R7M8A

Name: IHLP3232DZER4R7M8A
Brand: Vishay
SKU: 1064796
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP3232DZER4R7M8A
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	IHLP-3232DZ-8A 4.7 20% ER E3 / 4.7 µH Shielded Inductor 7.2 A 28.46mOhm Max Nonstandard
Datasheet	IHLP3232DZER4R7M8A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHLP-3232DZ-8A
Package	Tape & Reel
Material - Core	Metal Composite
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	7.2 A
Current - Saturation (Isat)	9.1A
Shielding	Shielded
DC Resistance (DCR)	28.46mOhm Max
Frequency - Self Resonant	18MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 180°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Max)	0.157" (4.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	541-IHLP3232DZER4R7M8ADKR,541-IHLP3232DZER4R7M8ACT,541-IHLP3232DZER4R7M8ATR
Standard Package	500
Win Source Part Number	1064796-IHLP3232DZER4R7M8A
Ultra Librarian 3D Model	Ultra Librarian IHLP3232DZER4R7M8A CAD Model

Alternative Products

Description

Vishay Dale 1064796-IHLP3232DZER4R7M8A is a fixed inductor with a shielding feature.

Shielding: Yes
Inductance: 4.7 µH
Tolerance: ±20%
AEC-Q200 Rated: Yes
Application: Automotive
Maximum Current Rating: 7.2 A
DC Resistance: 28.46 mOhm
Height: 0.157" (4.00mm)
Package: Tape and reel
Mounting: SMD (SMT)
Self-Resonant Frequency: 18MHz
Package/Case: Non-standard
Material: Metal Composite
Dimension: 0.340" L x 0.322" W (8.64mm x 8.18mm)
