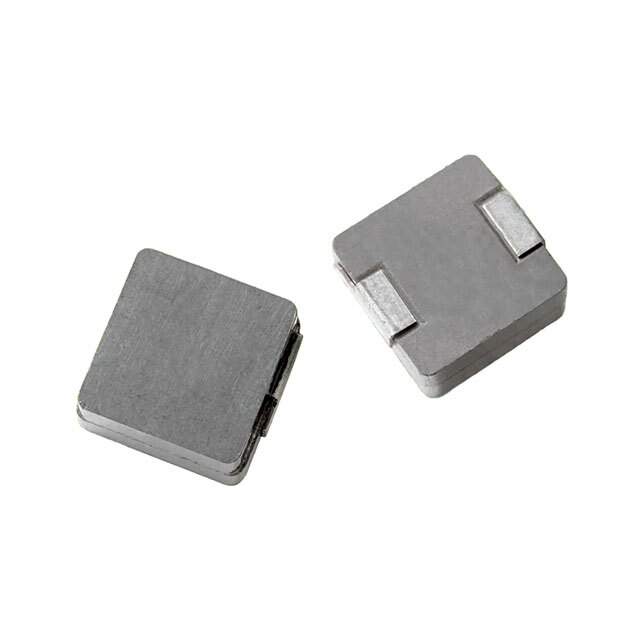

IHLP5050FDERR47MA1 Real Image1 IHLP5050FDERR47MA1 Real Image2
Same model may have multiple batches, images only for reference.
IHLP5050FDERR47MA1 Real Image1 IHLP5050FDERR47MA1 Real Image2
IHLP5050FDERR47MA1 Real Image1 IHLP5050FDERR47MA1 Real Image2
Same model may have multiple batches, images only for reference.

IHLP5050FDERR47MA1

Part No IHLP5050FDERR47MA1
Manufacturer Vishay
Catalog Fixed Inductors
Description IHLP-5050FD-A1 .47 20% ER E3 / 470 nH Shielded Inductor 41 A 1.2mOhm Max Nonstandard
Datasheet
IHLP5050FDERR47MA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay
Series IHLP-5050FD-A1
Package Tape & Reel
Type -
Material - Core Metal Composite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 41 A
Current - Saturation (Isat) 63A
Shielding Shielded
DC Resistance (DCR) 1.2mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.530" L x 0.508" W (13.46mm x 12.90mm)
Height - Seated (Max) 0.252" (6.40mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 250 pcs
Win Source Part Number 1382298-IHLP5050FDERR47MA1
Ultra Librarian 3D Model Ultra Librarian IHLP5050FDERR47MA1 CAD Model

Description

The IHLP5050FDERR47MA1 is a fixed inductor from Vishay. Bold the product name (e.g., BAV99S,135 → IHLP5050FDERR47MA1) and manufacturer (e.g., Nexperia USA Inc. → Vishay).

  • Series: IHLP-5050FD-A1
  • Inductance: 470 nH
  • Inductance Tolerance: ±20%
  • Shielded: Yes
  • Size: 0.530" L x 0.508" W (13.46mm x 12.90mm)
  • Height: 0.252" (6.40mm)
  • DC Resistance: 1.2mOhm
  • Mounting Type: surface mount
  • Temperature Range: -55°C to 125°C
  • AEC-Q200: Yes
