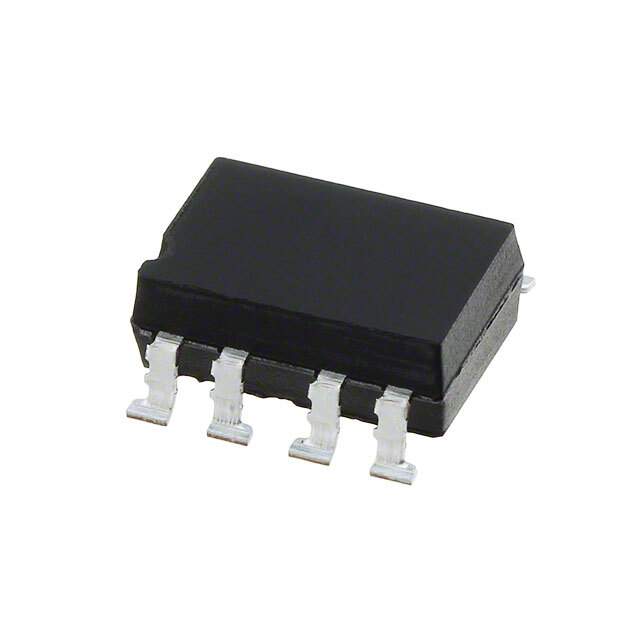

IL300-F-X009 Real Image
Same model may have multiple batches, images only for reference.

IL300-F-X009

Part No IL300-F-X009
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV PHVOLT 8SMD / Optoisolator Photovoltaic, Linearized Output 5300Vrms 1 Channel 8-SMD
Datasheet
IL300-F-X009 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Vishay Semiconductor Opto Division
Package Tube
Number of Channels 1
Voltage - Isolation 5300Vrms
Rise / Fall Time (Typ) 1µs, 1µs
Input Type DC
Output Type Photovoltaic, Linearized
Voltage - Output (Max) 500mV
Current - Output / Channel 70µA (Typ)
Voltage - Forward (Vf) (Typ) 1.25V
Current - DC Forward (If) (Max) 60 mA
Temperature Range - Operating -55°C ~ 100°C
Mounting SMD (SMT)
Package / Case 8-SMD, Gull Wing
Supplier Device Package 8-SMD
Base Product Number IL300
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Standard Package 2,000
Win Source Part Number 1206516-IL300-F-X009
Ultra Librarian 3D Model Ultra Librarian IL300-F-X009 CAD Model

Description

The IL300-F-X009 is an optoisolator with a photovoltaic output and linearized input type.

  • Maximum DC Forward Current: 60 mA
  • Typical Forward Voltage: 1.25V
  • Output Type: Photovoltaic
  • Current Output/Channel: 70μA
  • Channels: 1
  • Voltage Isolation: 5300Vrms
  • Maximum Output Voltage: 500mV
  • Package/Case: 8-SMD, Gull Wing
  • Operating Temperature Range: -55°C to 100°C
  • Manufacturer: Vishay Semiconductor Opto Division
