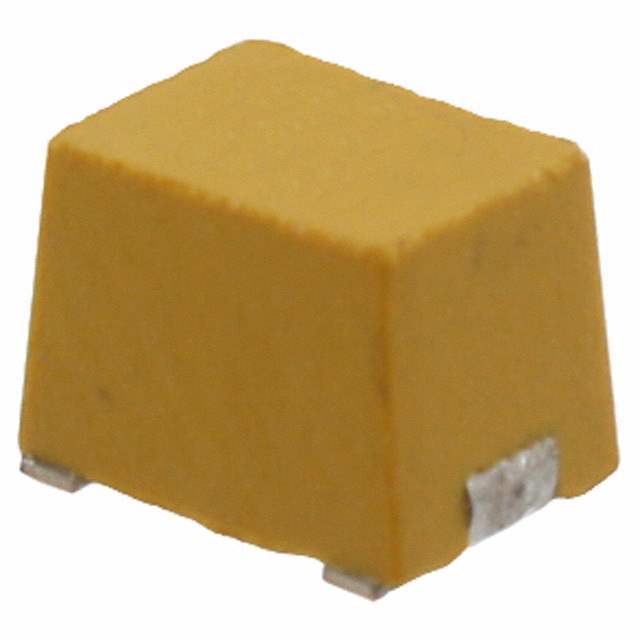

IMC1812ER560J Real Image
Same model may have multiple batches, images only for reference.

IMC1812ER560J

Part No IMC1812ER560J
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 56UH 135MA 5.5 OHM SMD
Datasheet
IMC1812ER560J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Powdered Iron
Inductance 56μH
Tolerance ±5%
Current Rating 135mA
DC Resistance (DCR) 5.5 Ohm Max
Q @ Freq 50 @ 2.52MHz
Frequency - Self Resonant 9MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 2.52MHz
Mounting SMD (SMT)
Case / Package 1812
Height - Seated (Max) 0.134" (3.40mm)
Win Source Part Number 068844-IMC1812ER560J
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IMC1812ER560J CAD Model

Description

This Vishay wirewound inductor has a Win Source Part Number of 068844-IMC1812ER560J.

  • Win Source Part Number: 068844-IMC1812ER560J
  • Current Rating: 135mA
  • Inductance: 56μH
  • Height (Seated): 0.134" (3.40mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±5%
  • Core Material: Powdered iron
  • Q @ Freq: 50 @ 2.52MHz
  • Frequency - Self Resonant: 9MHz
  • DC Resistance (DCR): 5.5 Ohm Max
  • Popularity: Medium
