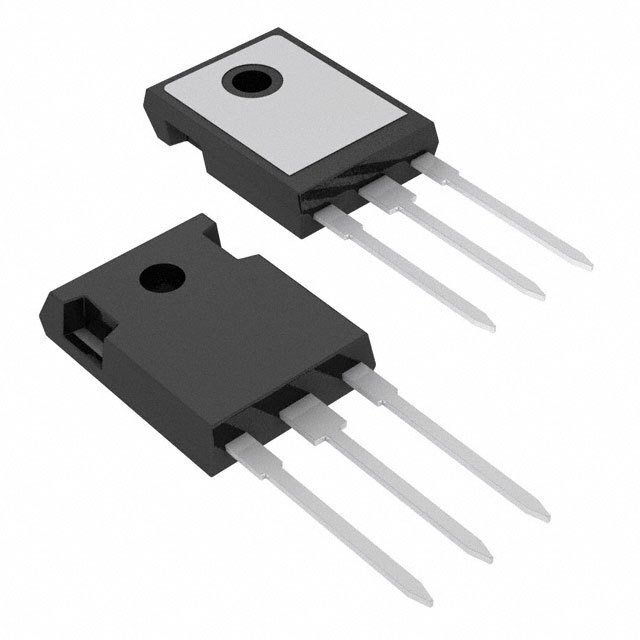

IRFP450NPBF Vishay
Same model may have multiple batches, images only for reference.

IRFP450NPBF

Part No IRFP450NPBF
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 500V 14A TO-247AC / Trans MOSFET N-CH 500V 14A 3-Pin(3+Tab) TO-247
Datasheet
IRFP450NPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Siliconix
Packaging Tube
Part Status Obsolete(EOL)
Channel Type Type N
Technology MOSFET
Drain Source Voltage 500V
Current - Continuous Drain (Id) @ 25°C 14A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 5V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 77nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 2260pF @ 25V
Vgs (Maximum) ±30V
Power Dissipation (Maximum) 200W (Tc)
Rds On (Maximum) @ Id, Vgs 370 mOhm @ 8.4A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Manufacturer Package TO-247-3
Package TO-247-3
Win Source Part Number 777062-IRFP450NPBF
Popularity Medium
Supply and Demand Status Limited
Family Name Trans MOSFET N-CH 500V 14A 3-Pin(3+Tab) TO-247
Introduction Date March 27, 2007
ECCN EAR99
Country of Origin China
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian IRFP450NPBF CAD Model

Description

The Vishay Siliconix IRFP450NPBF is a N-channel MOSFET.

  • Package: TO-247-3
  • Mounting: MOSFET technology
  • Continuous Drain Current: 14A (Tc)
  • Maximum Power Dissipation: 200W (Tc)
  • Maximum Vgs(th): 5V @ 250μA
  • Gate Charge: 77nC @ 10V
  • Channel Type: N
  • Drain-Source Voltage: 500V
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Limited
