The Vishay Siliconix MOSFET is a high-quality N-Channel transistor that features a 100V Vds drain-source breakdown voltage and a 4.3A Id continuous drain current.

• Vds Drain-Source Breakdown Voltage: 100V
• Id Continuous Drain Current: 4.3A
• Maximum Rds On: 540mOhm @ 900mA and 10V gate-source voltage
• Gate-Source Voltage Threshold: 4V @ 250μA
• Maximum Gate-Source Voltage: ±20V
• Input Capacitance: 180pF @ 25V

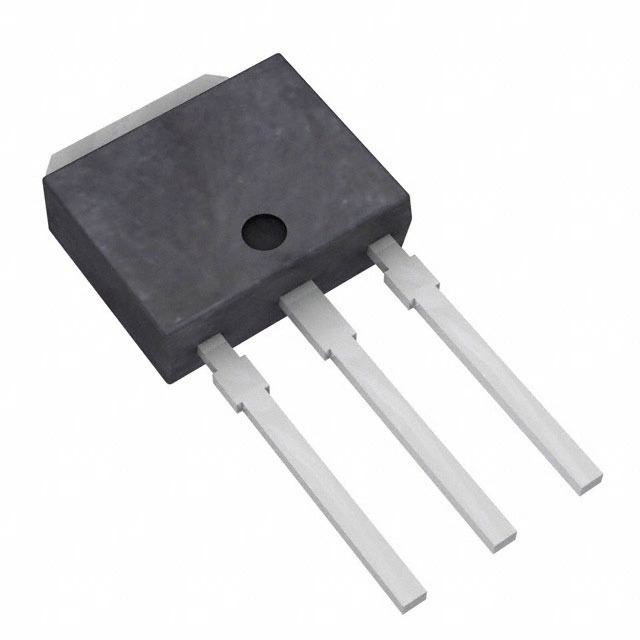

• Package: TO-251-3 Short Leads, IPak, TO-251AA
• Power Dissipation: 25W
• Category: Discrete Semiconductor Products
• Operating Temperature Range: -55°C to 150°C
• Product Status: obsolete
• Supply and Demand Status: limited
