Same model may have multiple batches, images only for reference.

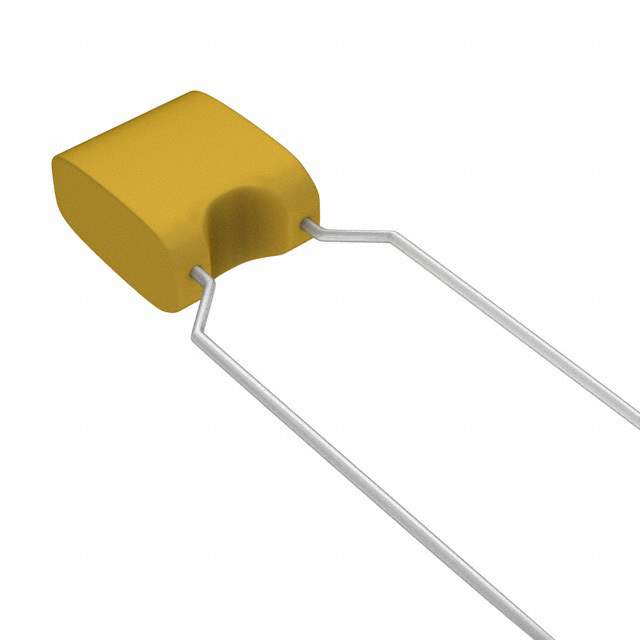

K220J15C0GF5TH5 Real Image
Same model may have multiple batches, images only for reference.

K220J15C0GF5TH5

Part No K220J15C0GF5TH5
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 22PF 50V C0G/NP0 RADIAL
Datasheet
K220J15C0GF5TH5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay BC Components
Series Mono-Kap K
Capacitance 22pF
Tolerance ±5%
Voltage Rating DC 50V
Temperature Coefficient C0G, NP0
Operating Temperature Range -55°C ~ 125°C
Applications General
Mounting Style Through Hole
Package Radial
Dimension 0.157" L x 0.098" W (4.00mm x 2.50mm)
Height - Seated (Maximum) 0.257" (6.54mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads
Win Source Part Number 760132-K220J15C0GF5TH5
Popularity Medium
Supply and Demand Status Balance
Family Name K
Introduction Date September 22, 2003
ECCN EAR99
Country of Origin China
Halogen Free Unknown
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian K220J15C0GF5TH5 CAD Model

Description

The Vishay BC Components Mono-Kap K capacitor is a high-quality through-hole component that is ideal for use in a wide range of general applications.

  • Capacitance: 22pF
  • Tolerance: ±5%
  • Package: Radial
  • Lead Spacing: 0.197 inches (5.00mm)
  • EOL Date: 2027 (Estimated)
