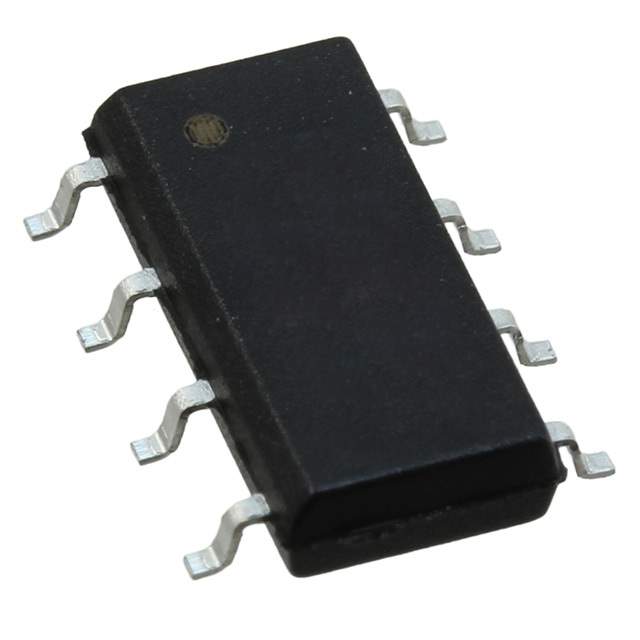

LH1532FP Real Image
Same model may have multiple batches, images only for reference.

LH1532FP

Part No LH1532FP
Manufacturer Vishay
Catalog Solid State Relays
Description Dual 1 Form A Solid State Relay | SSR RELAY SPST-NO 120MA 0-350V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay Semiconductor Opto Division
Packaging Tube
Status Obsolete
Mounting Style SMD
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Parts Input Voltage (V) 1.22VDC
Load Voltage (V) 0V ~ 350V
Load Current 120mA
On-State Resistance (Maximum) 20 Ohms
Termination Style Gull Wing
Manufacturer Package 8-SOP (0.180", 4.57mm Width)
Supplier Device Package 8-SOP
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 1196407-LH1532FP
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LH1532FP CAD Model

Description

The Vishay Semiconductor Opto Division LH1532FP is an obsolete SPST-NO (1 Form A) x 2 relay.

  • Relay Type: SPST-NO (1 Form A) x 2
  • Load Current: 120mA
  • On-State Resistance: 20 Ohms
  • Load Voltage: 0V to 350V
  • Input Voltage: 1.22VDC
  • Package: 8-SOP
  • Termination: Gull-wing
  • Mounting Style: Surface mount
  • Application: Automotive and circuit protection
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 2,000
  • Status: Obsolete
