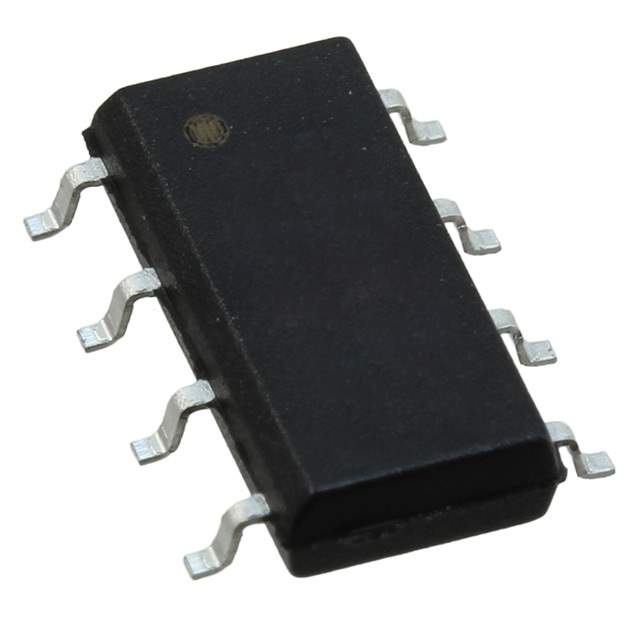

LH1532FPTR Real Image
Same model may have multiple batches, images only for reference.

LH1532FPTR

Part No LH1532FPTR
Manufacturer Vishay
Catalog Solid State Relays
Description SOP-8 SSR DUAL 1 FORM A
Datasheet
LH1532FPTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay
Packaging Reel - TR
Status Active
Circuit DPST (2 Form A)
Output Type AC, DC
Max On Resistance 20 Ohm
Load Current 120mA
Voltage - Input 1.22VDC
Voltage - Load 0 to 350 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-SOP
Relay Type Relay
Win Source Part Number 018600-LH1532FPTR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LH1532FPTR CAD Model

Description

The Vishay Relay is a DPST (2 Form A) circuit relay.

  • Load Current: 120mA
  • Voltage Range: 0 to 350V
  • Maximum On Resistance: 20 Ohm
  • Packaging: 8-SOP
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Relay Type: AC/DC
  • Termination Style: Gull Wing
  • Mounting: SMD (SMT)
  • Input Voltage: 1.22VDC
