Same model may have multiple batches, images only for reference.

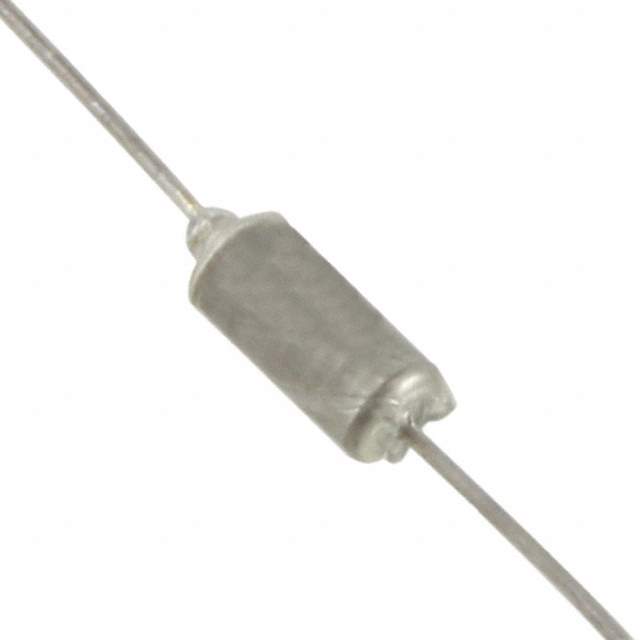

M39003/01-2283 Real Image
Same model may have multiple batches, images only for reference.

M39003/01-2283

Part No M39003/01-2283
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 2.2UF 10% 20V AXIAL
Datasheet
M39003/01-2283 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Estimated Pruduction Lead Time 19 Weeks
Features 2.2 µF Hermetically Sealed Tantalum Capacitors 20 V Axial -
Manufacturer Vishay
Series Military, MIL-PRF-39003/1, CSR13
Package Bulk
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole
Package Axial
Family Name M39003/01
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.21.0020
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 924849-M39003/01-2283
Ultra Librarian 3D Model Ultra Librarian M39003/01-2283 CAD Model

Description

The Vishay M39003/01-2283 is a hermetically sealed tantalum capacitor with a capacitance of 2.2µF and a voltage rating of 20V.

  • Series: M39003/01
  • Application: Military
  • Operating Temperature: -55°C to 125°C
  • Package: Axial
  • Mounting Type: Through-Hole
  • REACH: Affected
  • ECCN: EAR99
