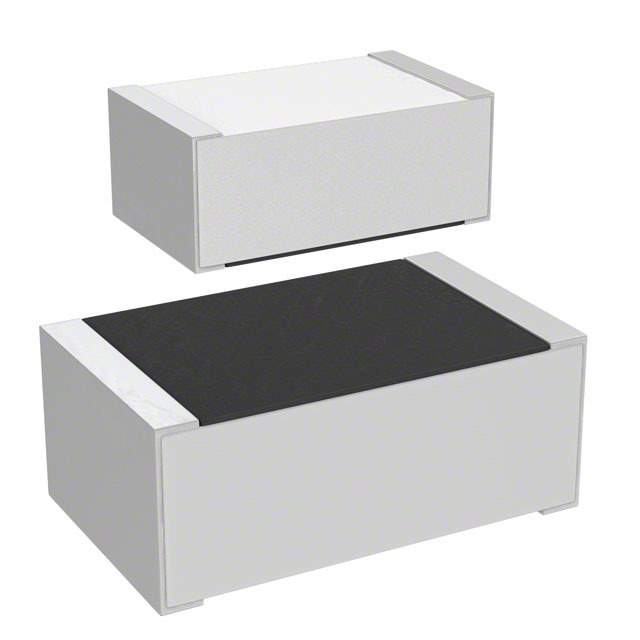

M55342K06B100BRT5 Real Image
Same model may have multiple batches, images only for reference.

M55342K06B100BRT5

Part No M55342K06B100BRT5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 100K OHM 0.1% 0.15W 0705  /  100 kOhms ±0.1% 0.15W Chip Resistor 0805 (2012 Metric) Military, Non-Inductive Thin Film
Datasheet
M55342K06B100BRT5 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series Military, MIL-PRF-55342, RM0705
Package Tape & Reel (TR)
Resistance 100 kOhms
Tolerance ±0.1%
Power (Watts) 0.15W
Composition Thin Film
Features Military, Non-Inductive
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0705
Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
Failure Rate R (0.01%)
Base Product Number M55342
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names M55342K06B100BRT5-ND,M55342K06B100BRT5-MIL,764-M55342K06B100BRT5TR
Standard Package 500
Win Source Part Number 1010703-M55342K06B100BRT5
Ultra Librarian 3D Model Ultra Librarian M55342K06B100BRT5 CAD Model

Description

The Vishay Dale Thin Film M55342K06B100BRT5 is a chip resistor with a resistance of 100 kOhms.

  • Resistance: 100 kOhms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.15W
  • Failure Rate: R (0.01%)
  • Composition: Thin Film
  • Terminations: 2
  • Package: Tape & Reel (TR)
  • Height (Seated): 0.033" (0.84mm)
  • Temperature Range: -55°C to 150°C
  • RoHS Compliance: Non-compliant
  • ECCN: EAR99
