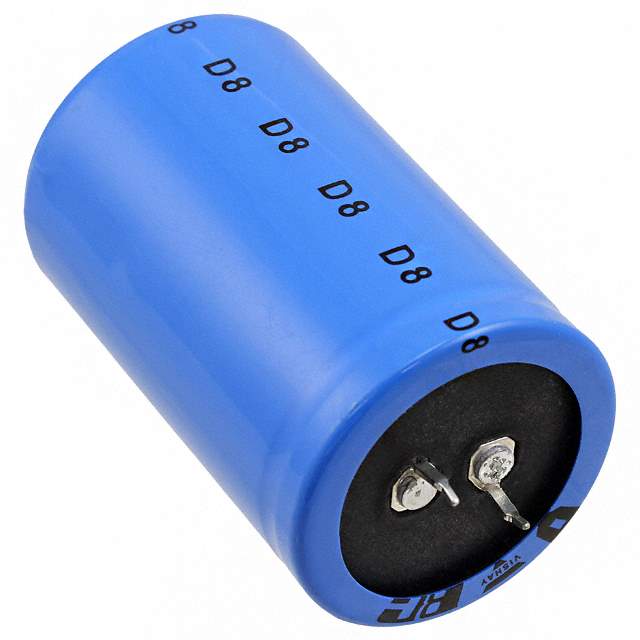

MAL215625223E3 Real Image
Same model may have multiple batches, images only for reference.

MAL215625223E3

Part No MAL215625223E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 22000UF 20% 16V SNAP  /  22000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 44mOhm @ 100Hz 5000 Hrs @ 85°C
Datasheet
MAL215625223E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series 156 PUM-SI
Package Bulk
Capacitance 22000 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 44mOhm @ 100Hz
Lifetime @ Temp. 5000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 4.71 A @ 100 Hz
Impedance 29 mOhms
Lead Spacing 0.394" (10.00mm)
Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.457" (37.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Standard Package 100
Win Source Part Number 1034835-MAL215625223E3
Ultra Librarian 3D Model Ultra Librarian MAL215625223E3 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components 156 PUM-SI series of aluminum electrolytic capacitors are ideal for general purpose applications.

  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Series: 156 PUM-SI
  • Application: General Purpose
  • Capacitance: 22000 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Impedance: 29 mOhms
  • ESR (Equivalent Series Resistance): 44mOhm @ 100Hz
  • Lifetime: 5000 Hrs @ 85°C
  • Polarization: Polarized
  • Mounting Type: Through-Hole
  • Package/Case: Radial, Can - Snap-In
  • Operating Temperature Range: -40°C ~ 85°C
  • Dimensions: 1.181" Dia (30.00mm)
  • Alternative Parts (Cross-Reference): LGY1C223MELB35, LGY1E223MELC35, LGY1E223MELB45, 16VXG22000MEFCSN30X40, SLPX223M010C3P3, and 25MXC22000MEFCSN30X35
  • MSL Level: Not Applicable
  • REACH Status: REACH Unaffected
  • HTSUS: 8532.22.0040
  • Ripple Current @ Low Frequency: 4.71 A @ 100 Hz
