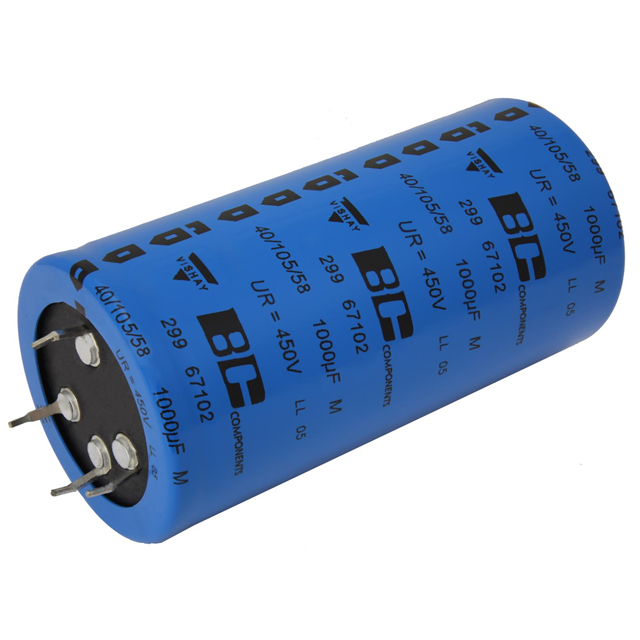

Same model may have multiple batches, images only for reference.

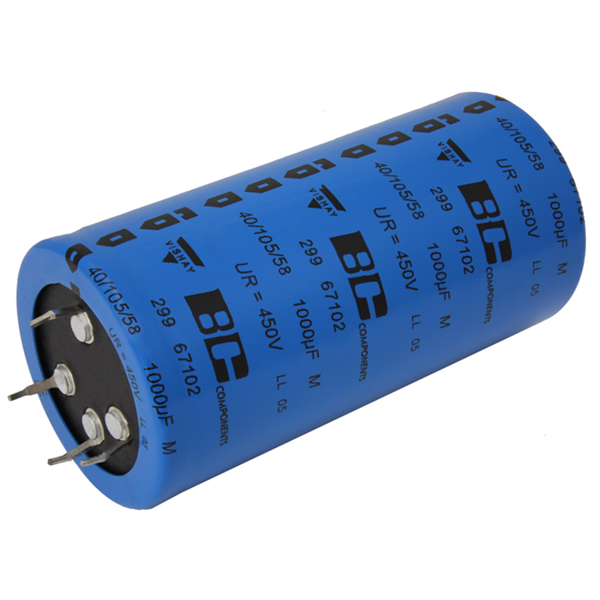

MAL229956152E3 Real Image
Same model may have multiple batches, images only for reference.

MAL229956152E3

Part No MAL229956152E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 1500UF 20% 400V SNAP 4L
Datasheet
MAL229956152E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Bulk
Status Active
Capacitance 1500μF
Tolerance ±20%
Voltage Rating 400V
ESR 90 mOhm @ 100Hz
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C to 105°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 5.54A @ 100Hz
Ripple Current - High Frequency 8.31A @ 10kHz
Impedance 60 mOhm
Lead Spacing 0.886" (22.50mm)
Height - Seated (Max) 4.016" (102.00mm)
Mounting Through Hole
Dimension Radial, Can - Snap-In - 4 Lead
Win Source Part Number 1027555-MAL229956152E3
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MAL229956152E3 CAD Model

Description

The Vishay MAL229956152E3 is a general-purpose capacitor that has a voltage rating of 400V.

  • Voltage Rating: 400V
  • Mounting Type: Through Hole
  • Package: Radial, Can-Snap-In-4-Lead
  • Capacitance: 1500μF
  • Tolerance: ±20%
  • Impedance: 60 mOhm
  • ESR: 90 mOhm @ 100Hz
  • Ripple Current: 5.54A @ 100Hz and 8.31A @ 10kHz
  • Popularity: Popular
  • Supply and Demand Status: Sufficient
  • Lifetime: 5000 Hrs @ 105°C
  • Polarity: Polarized
  • Temperature Range: -40°C to 105°C
