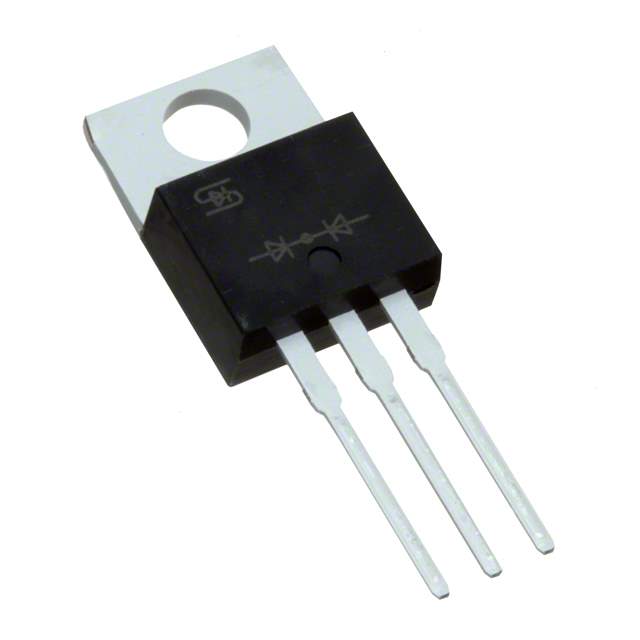

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 880mV @ 10A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5μA @ 200V
Operating Temperature - Junction -65°C to 175°C
Mounting Through Hole
Case / Package TO-220AB
Win Source Part Number 093722-MBR20H200CT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MBR20H200CT CAD Model

Description

The MBR20H200CT, manufactured by Vishay, is a high-popularity component used in discrete semiconductor products. This component is a Schottky diode with a voltage - DC reverse (Vr) (Max) of 200V and a voltage - forward (Vf) (Max) @ If of 880mV @ 10A. It has a current - reverse leakage @ Vr of 5μA @ 200V and an operating temperature - junction of -65°C to 175°C. The diode configuration is 1 Pair Common Cathode and the current - average rectified (Io) (per diode) is 10A. This component comes in a TO-220AB case / package and has a fast recovery speed (frequency) of 200mA (Io).
