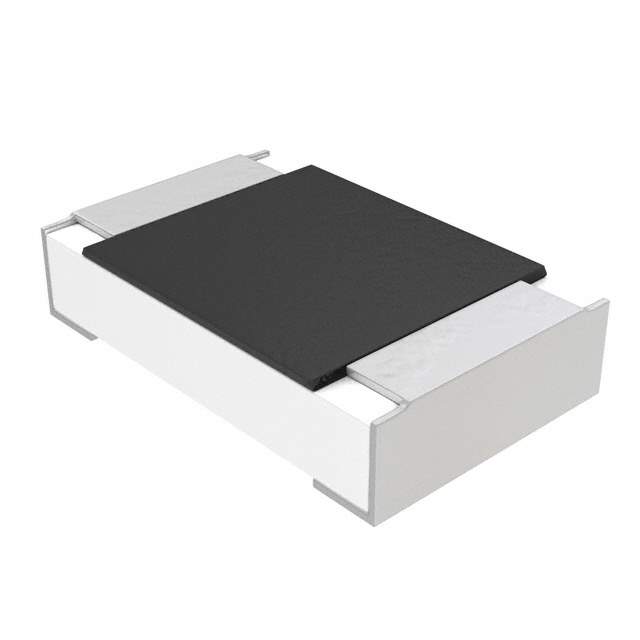

Same model may have multiple batches, images only for reference.

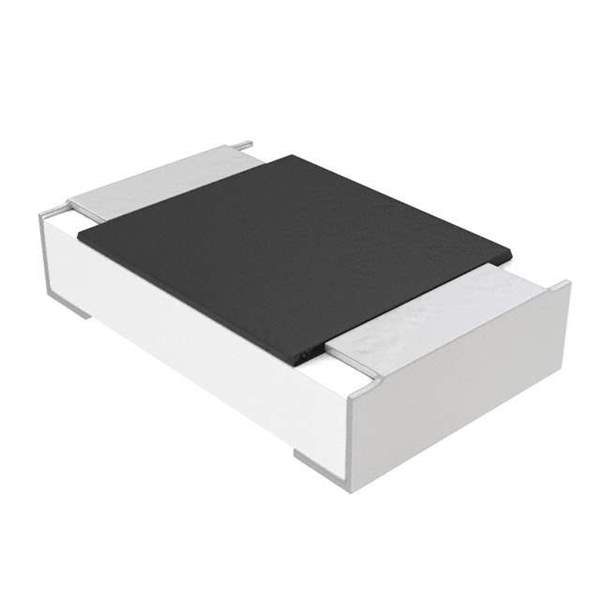

MCU08050C1003FP500 Real Image
Same model may have multiple batches, images only for reference.

MCU08050C1003FP500

Part No MCU08050C1003FP500
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 100K OHM 1% 1/5W 0805  /  100 kOhms ±1% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) Anti-Sulfur Thin Film
Datasheet
MCU08050C1003FP500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series MCU - Professional
Package Tape & Reel
Resistance 100 kOhms
Tolerance ±1%
Power (Watts) 0.2W, 1/5W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names MCU0805-100K-CFTR,MCU0805-100K-CFDKR,MCU0805-100K-CFCT
Standard Package 5,000
Win Source Part Number 966159-MCU08050C1003FP500
Ultra Librarian 3D Model Ultra Librarian MCU08050C1003FP500 CAD Model

Description

The MCU08050C1003FP500 is a chip resistor with a resistance value of 100 kOhms.

  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Series: MCU - Professional
  • Properties: Anti-sulfur
  • Tolerance: +/-1%
  • Temperature Coefficient: +/-50ppm/°C
  • Resistor Type: Thin film
  • Power Rating: 0.2W (1/5W)
  • Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Package/Case Size: 0805 (2012 Metric)
